  • UPL-WW-50W/100W/120W-M

›

UPL-WW-50W/100W/120W-M
Send Order Request
Download Technical

Share:

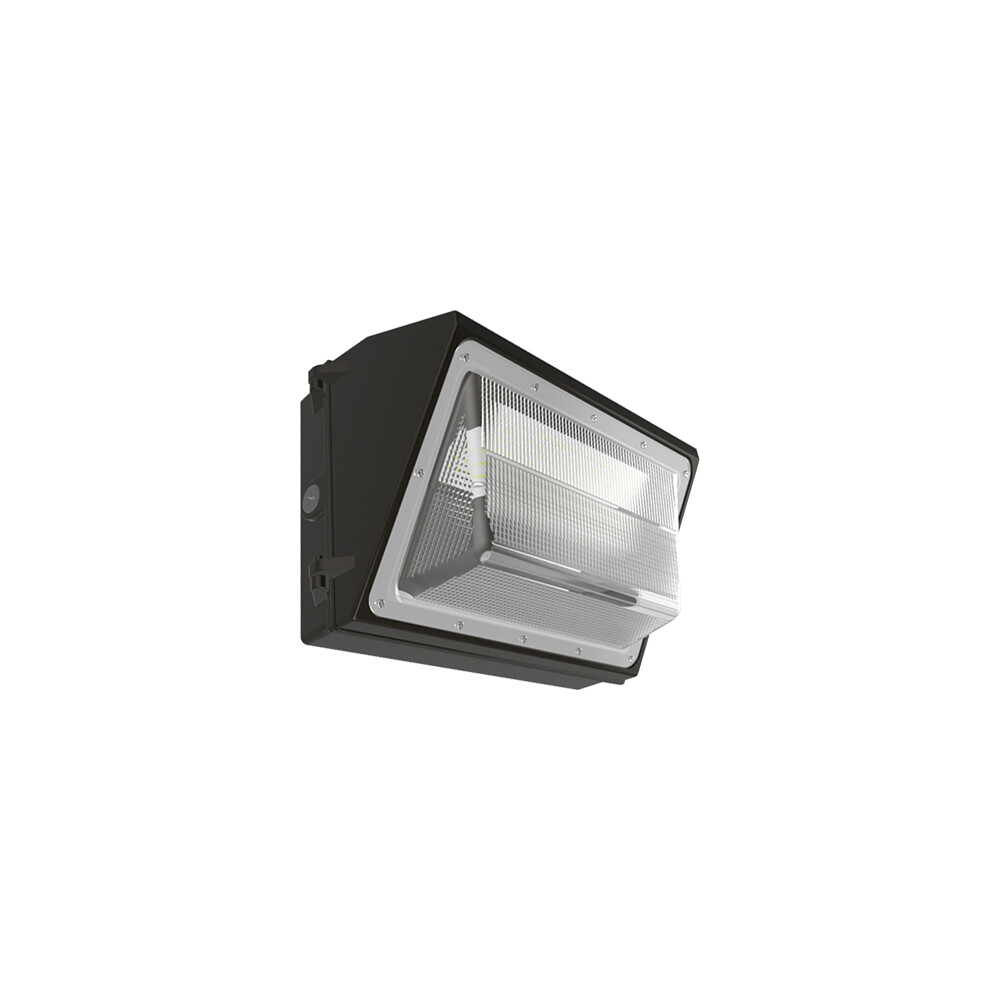

Product NameLED Wall Lamps
Power50W/100W/120W
Input VoltageAC230V 50HZ
Light SourcesSAMSUNG SMD LEDs/LUMILEDS/CREE
LED driversMeanwell
Housing colorBlack
Beam Angles90°
Lumens120-130LM/W
CCT3000K/4000K/5000K/6000K
CRICRI≥80/90 (CRI97 is available)
WaterproofIP65
FunctionMotion sensor
Sensor Hold time5S/30S/90S/3min/20min/30min(set via 3 DIP switch)
Daylight sensor2lux/10lux/25lux/50lux/Disable (set via 3 DIP switch) (Ambient diffusion status)
Light efficiency≥90%
Housing materialDie-casting Aluminum/Glass
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

ModelPowerLamp Dimension
UPL-WW-50W-M50WL363*W234*H163mm
UPL-WW-100W-M100WL363*W234*H163mm
UPL-WW-120W-M120WL363*W234*H163mm
