  • UPL-TUBULAR-20W/40W/50W/60W
  • UPL-TUBULAR-20W/40W/50W/60W

›

UPL-TUBULAR-20W/40W/50W/60W
Send Order Request
Download Technical

Share:

Product NameIP66 TUBULAR TRIPROOF LINEAR
Power20W/40W/50W/60W
Input VoltageAC230V 50HZ
Light SourcesLUMILEDS/CREE SMD LED
LED DriverPHILIPS/TCI/OSRAM
DimmingTriac/1-10V/DALI
WaterproofIP66
Beam angle120°
Lumens130-140LM/W or 150-160LM/W (Optional)
CRICRI≥80/90 (CRI97 is available)
CCT3000K/4000K/6000K/Dual color 2700K-6500K
Housing colorSilver
InstallationCeiling Mounted / Suspending Mounted
CoverFrosted PC or Transparent PC or PMMA

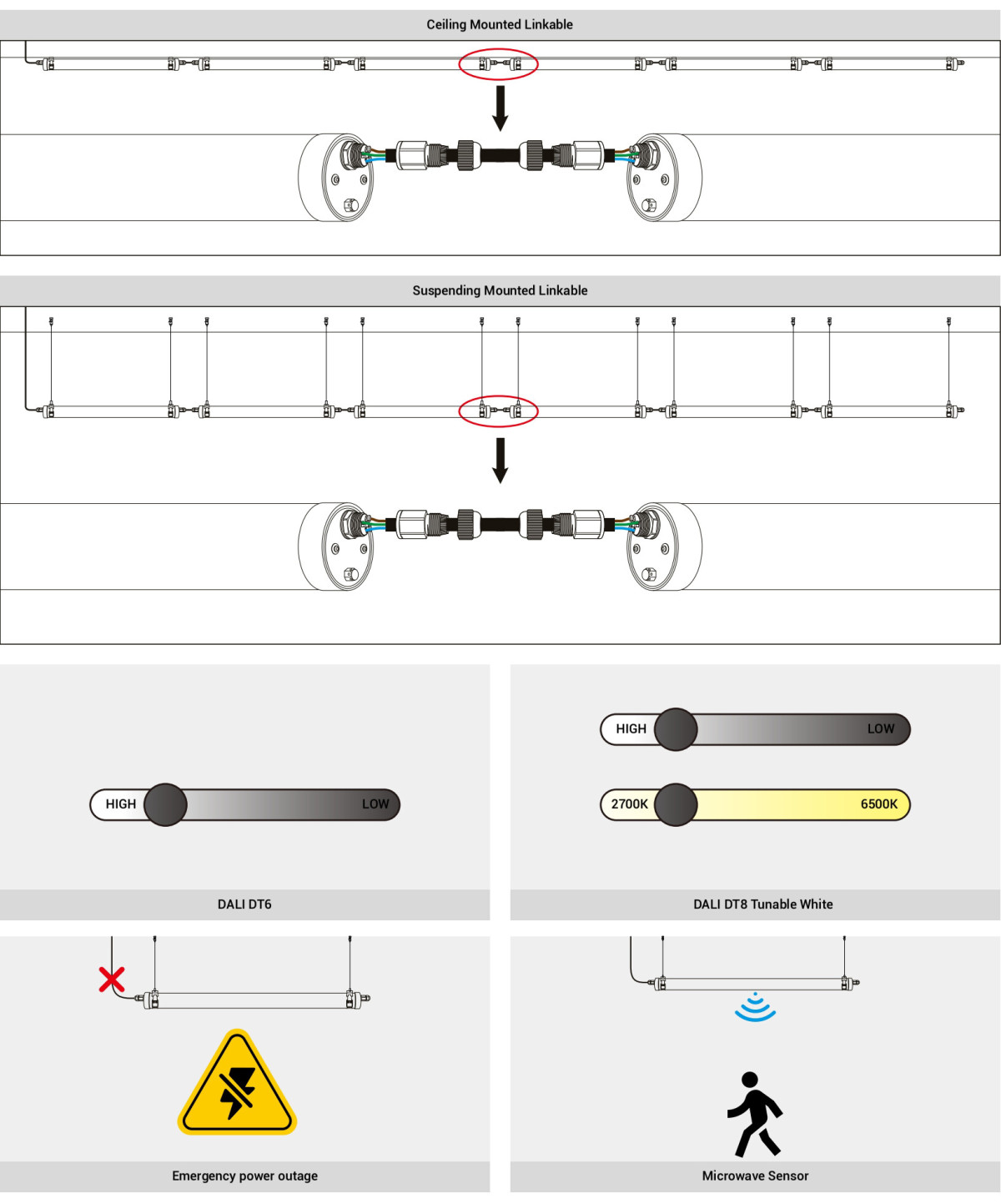

FunctionLinkable & Microwave sensor-On/ff & Microwave sensor 0-10V & DALI DT6 & DALI DT8 & Emergency power
FunctionIP66 & IK69K/IK10
MaterialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

ModelPowerLamp Dimension
UPL-TUBULAR-20W-6020WDia70*L600mm
UPL-TUBULAR-40W-12040WDia70*L1200mm
UPL-TUBULAR-50W-15050WDia70*L1500mm
UPL-TUBULAR-60W-15060WDia70*1500mm

TUBULAR TRIPROOF-1
