  • UPL-TP-30W/40W/60W-IP65

›

UPL-TP-30W/40W/60W-IP65
Send Order Request
Download Technical

Share:

TP-IP65-功能

Product NameIP65 TRIPROOF Linear Lamps
Power30W/40W/60W
Input VoltageAC230V 50HZ
Light SourcesCREE SMD LEDs
LED DriversPHILIPS/TCI/OSRAM
DimmingNon-Dim/1-10V/DALI
Housing colorSilver
Beam Angles110°
Lumens130-140LM/W or 150-160LM/W (Optional)
CCT3000K/4000K/5000K/Dual color 2700K-6500K

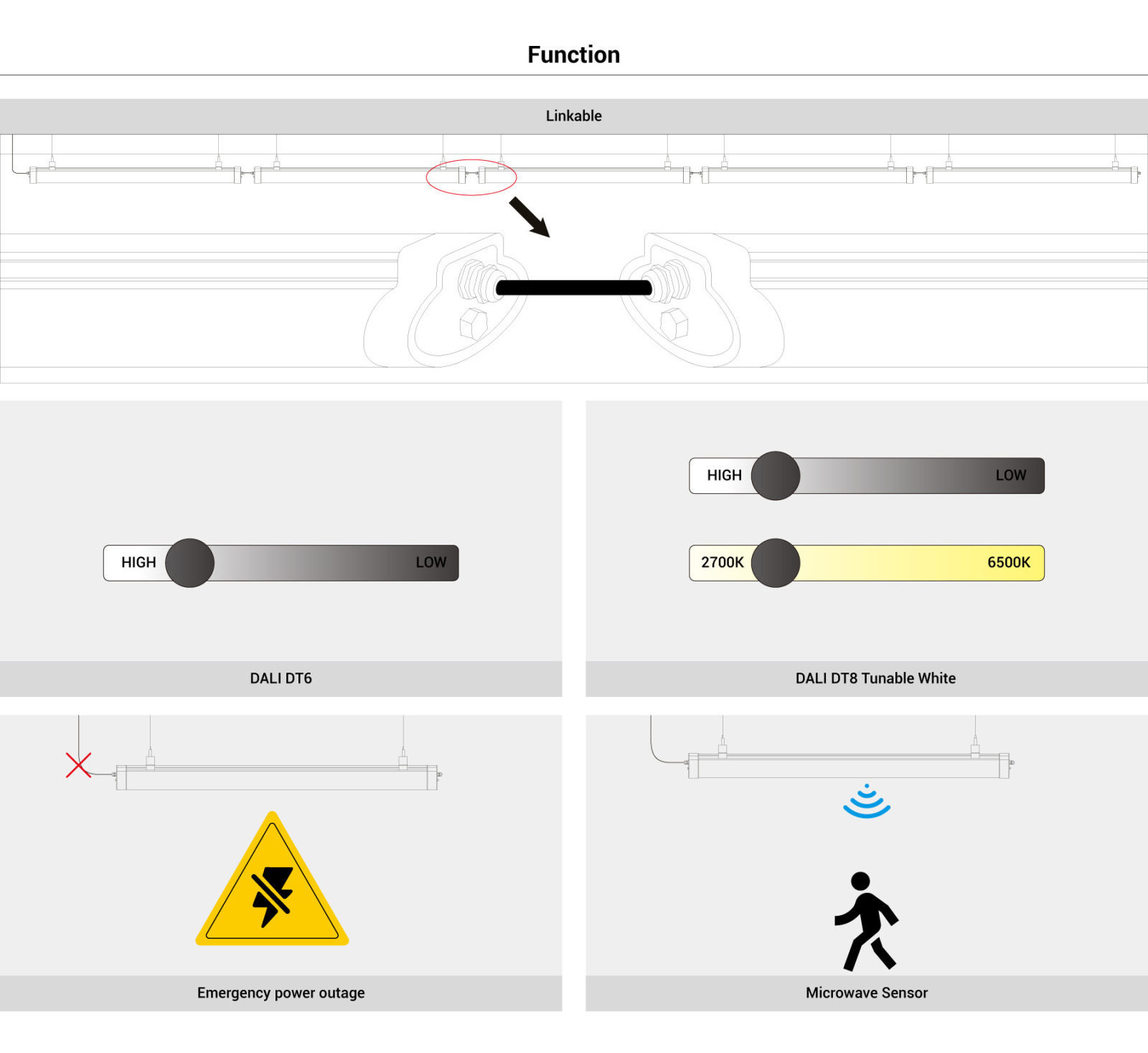

FunctionLinkable
Microwave sensor-On/ff
Microwave sensor 0-10V
DALI DT6 / DALI DT8
Emergency power
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum housing/PC Diffuser
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

TP-IP65-线图

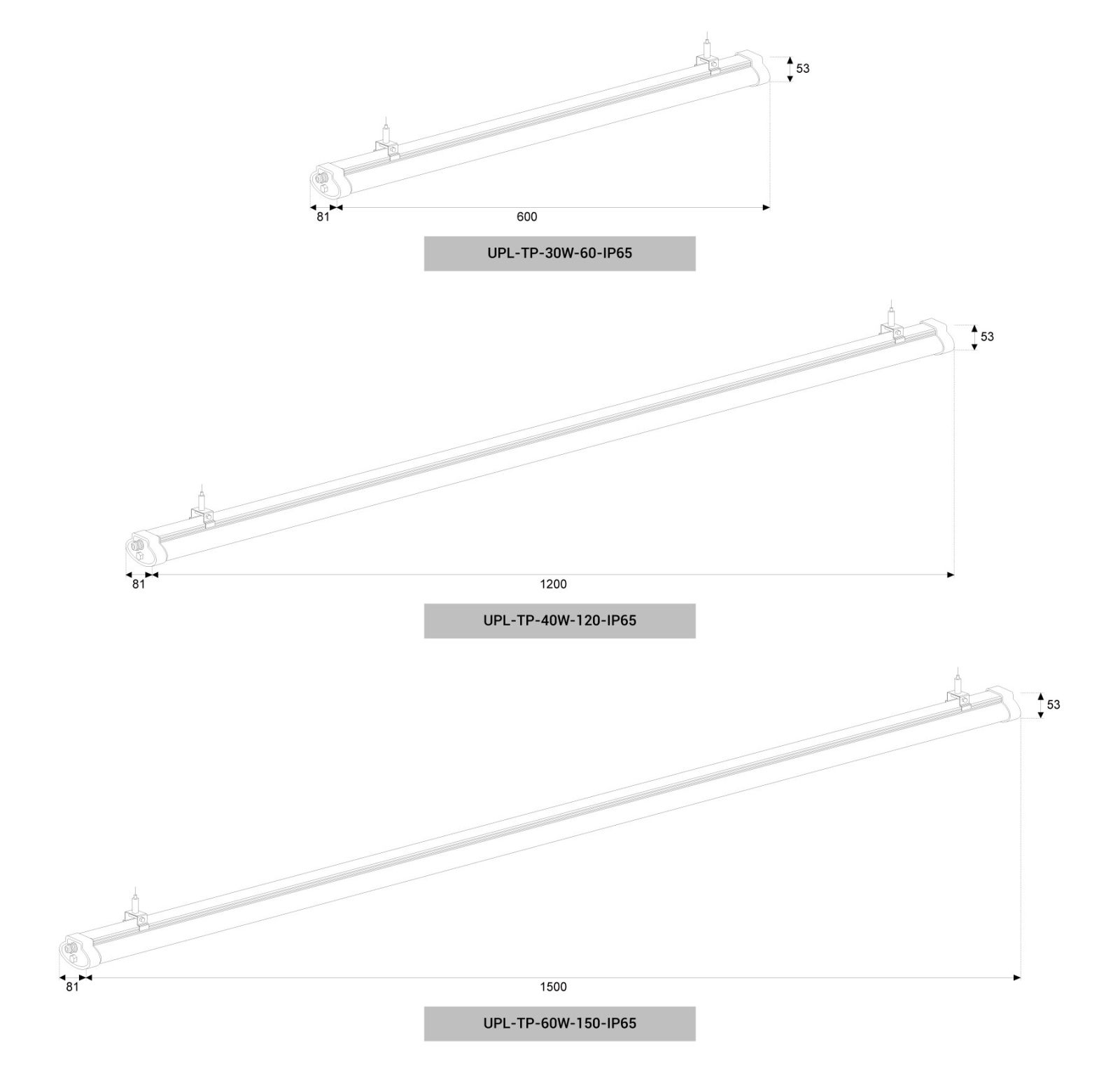

ModelPowerLamp Dimension
UPL-TP-30W-60-IP6530WL600*W81*H53mm
UPL-TP-40W-120-IP6540WL1200*W81*H53mm
UPL-TP-60W-150-IP6560WL1050*W81*H53mm
