UPL-LL-30W/40W/60W
Send Order Request
Download Technical

Share:

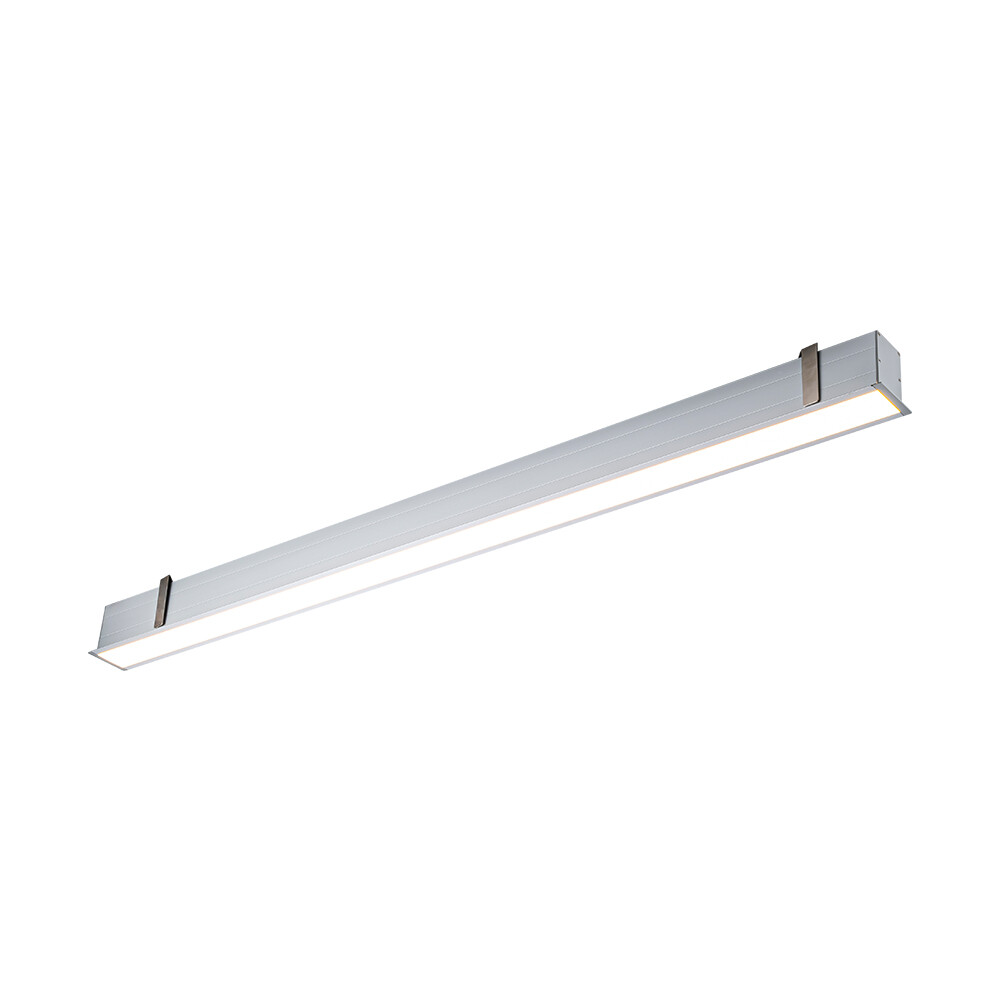

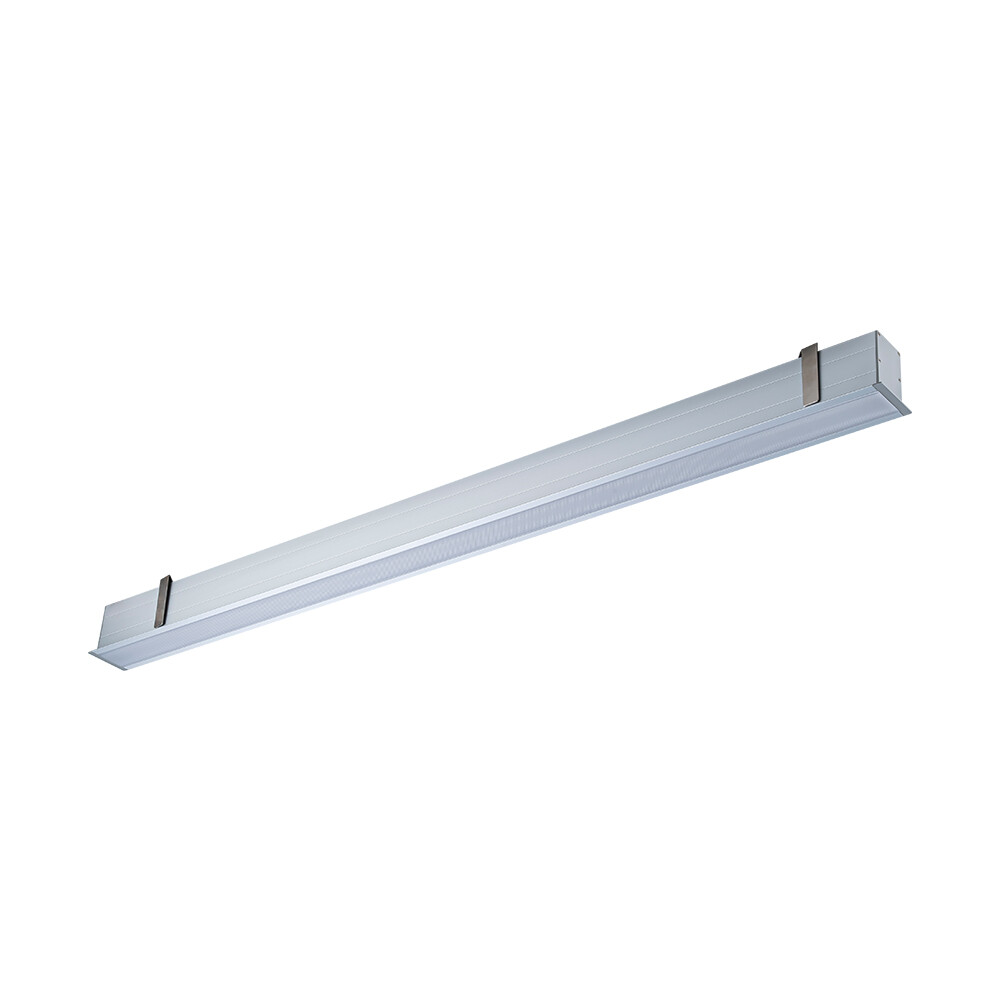

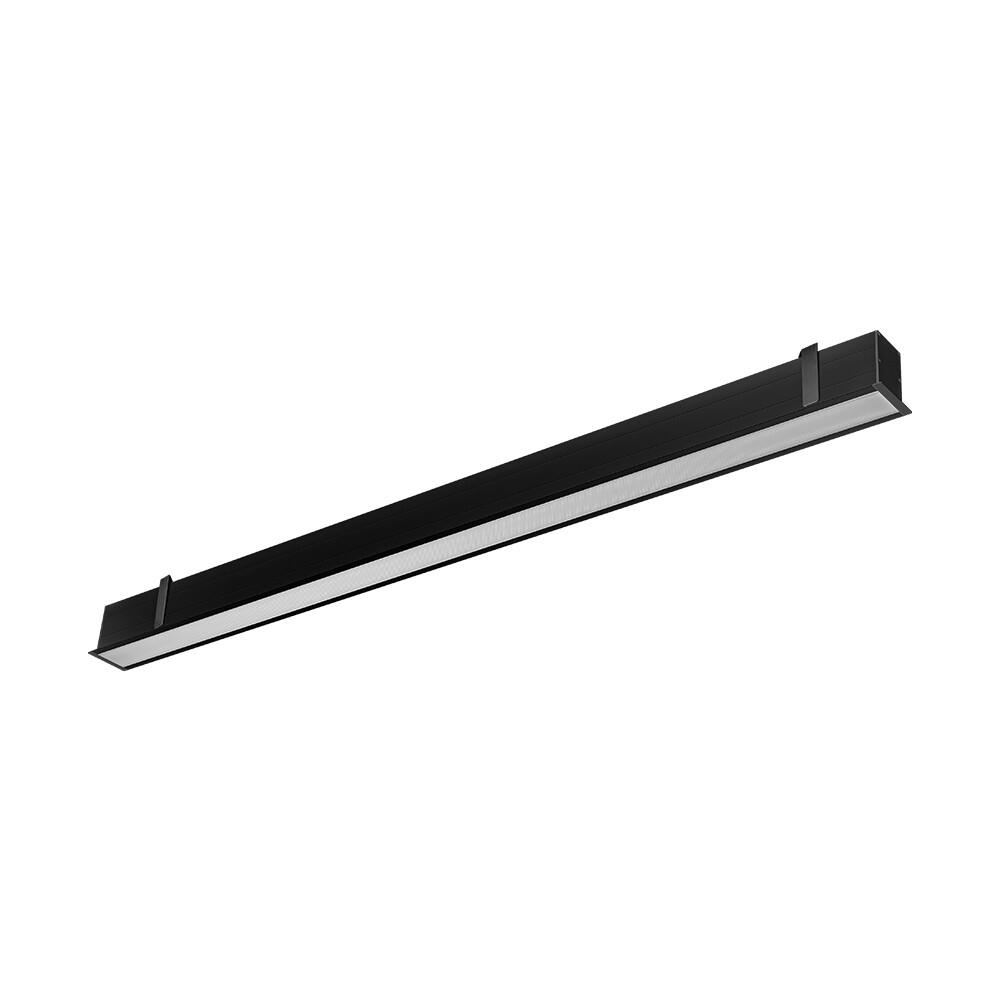

Product NameLL Recessed Linear Light
Power30W/40W/60W
Input VoltageAC230V 50HZ
Light SourcesLUMILEDS/CREE SMD LEDs
LED DriversPhilips/DALI DT6/DALI DT8
DimmingNon-Dimming/DT6/DT8/Linkable/CCT Selectable/CCT & Power Selectable
Housing colorBlack/Silver
Beam Angles120°
Lumens130-140LM/W
CCT3000K/4000K/6000K/Adjustable 3000K-6000K
Prismatic diffuser length15m/30m available
FunctionLinkable available
URG<19
CRICRI≥80/90 (CRI97 is available)
InstallationSuspended/Surface/Track rail
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

ModelPowerLamp DimensionCut size
UPL-LL-30W-9030WL900*W68*H75mmL880*W50mm
UPL-LL-40W-10040WL1000*W68*H75mmL980*W50mm
UPL-LL-40W-12040WL1200*W68*H75mmL1180*W50mm
UPL-LL-60W-12060WL1200*W68*H75mmL1180*W50mm
UPL-LL-40W-15040WL1500*W68*H75mmL1480*W50mm
UPL-LL-60W-15060WL1500*W68*H75mmL1480*W50mm
