UPL-CL-2W/3W/5W/8W/12W
Send Order Request
Download Technical

Share:

Product NameMini Anti-glare lights
Power2W/3W/5W/8W/12W
Input VoltageAC230V 50HZ
Light Sources OSRAM/CREE LEDs
LED DriverLIFUD
Beam Angles15°/25°/45°
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI
CCT2700K/3000K/4000K/5000K
Color rendering index CRI≥80/90 (CRI97 is available)
Lumens100-110LM/W
Housing colorWhite
Housing materialDie-casting Aluminum
CertificatesCE & RoHs
Life-span50 000 hours

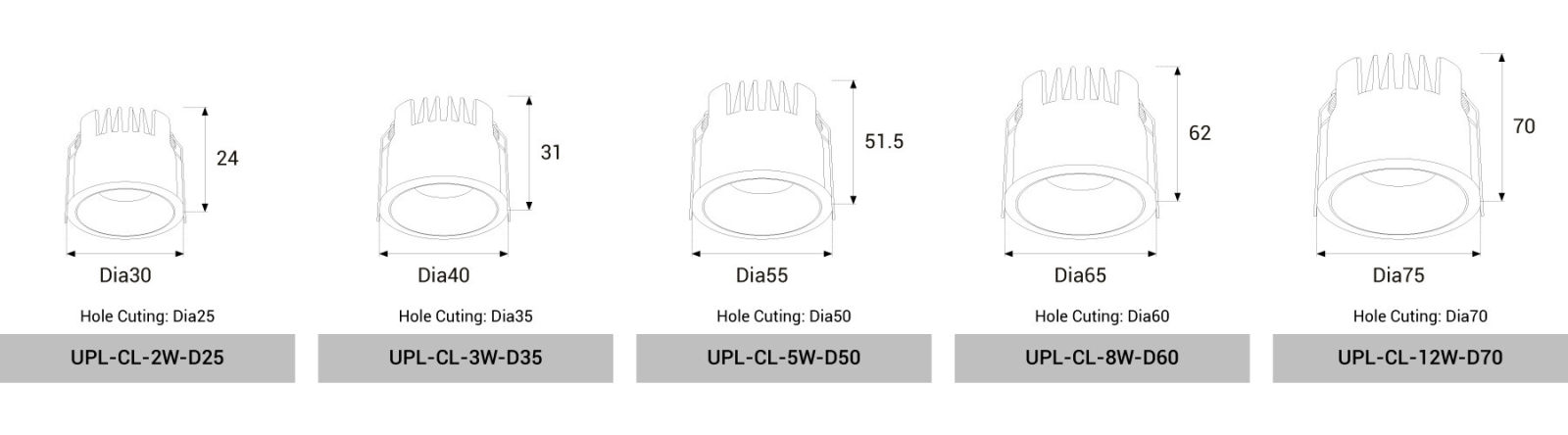

CL-D-线图

ModelPowerLamp DimensionHole Cutting
UPL-CL-2W-D25 2WDia30*H24mmDia25mm
UPL-CL-3W-D35 3WDia40*H31mmDia35mm
UPL-CL-5W-D50 5WDia55*H51.5mmDia50mm
UPL-CL-8W-D60 8WDia65*H62mmDia60mm
UPL-CL-12W-D70 12WDia75*H70mmDia70mm
