  • UPL-IORS-20W/25W/30W/35W
  • UPL-IORS-20W/25W/30W/35W

›

UPL-IORS-20W/25W/30W/35W
Send Order Request
Download Technical

Share:

Product NameRecessed LED Downlights
Power20W/25W/30W/35W
Input VoltageAC230V 50HZ
Light SourcesCREE/CITIZEN/TRIDONIC COB LEDs
LED DriversPHILIPS/OSRAM/TRIDONIC
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI
Housing colorWhite+Black
Lumens110-120LM/W
CCT2700K/3000K/3500K/4000K/5000K
Beam Angles15°/30°/40°/60°
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

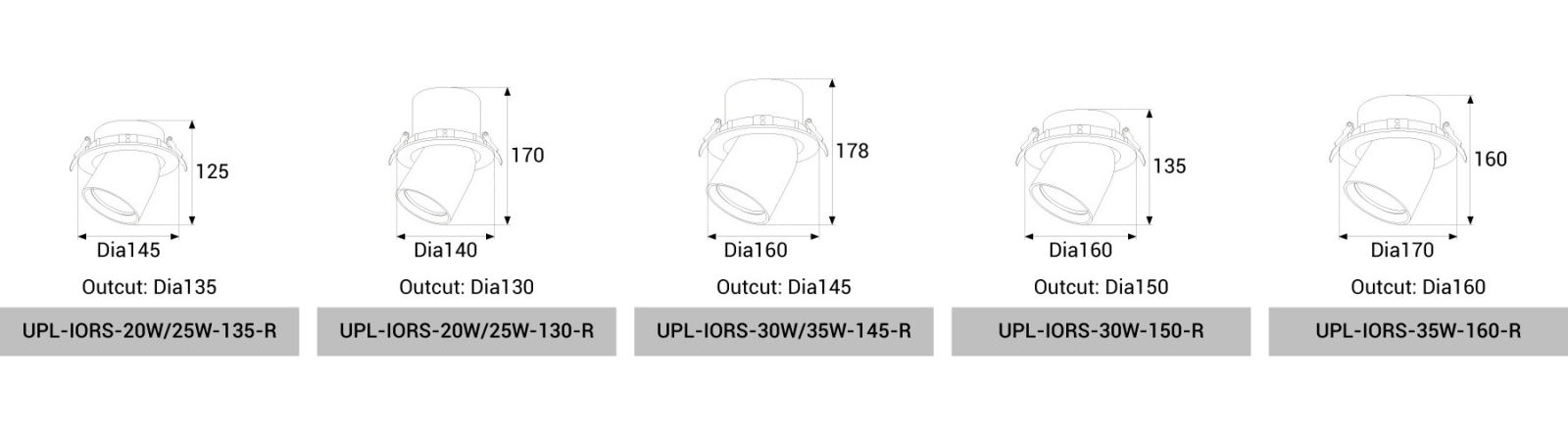

IORS-R-线图

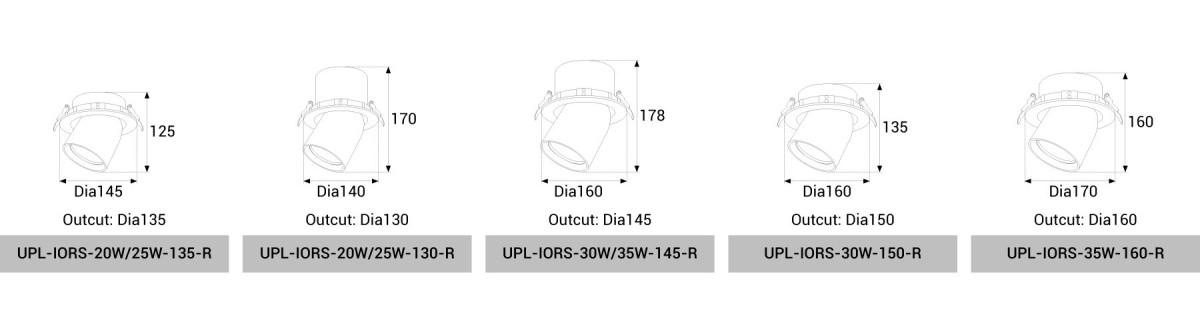

ModelPowerLamp DimensionHole Cutting
UPL-IORS-20W/25W-130mm20W/25WDia140*H170 mmDia130 mm
UPL-IORS-30W/35W-145mm30W/35WDia160*H178 mmDia145 mm
UPL-IORS-20W/25W-135mm20W/25WDia145*H125 mmDia135 mm
UPL-IORS-30W-150mm30WDia160*H135 mmDia150 mm
UPL-IORS-35W-160mm35WDia170*H160 mmDia160 mm
