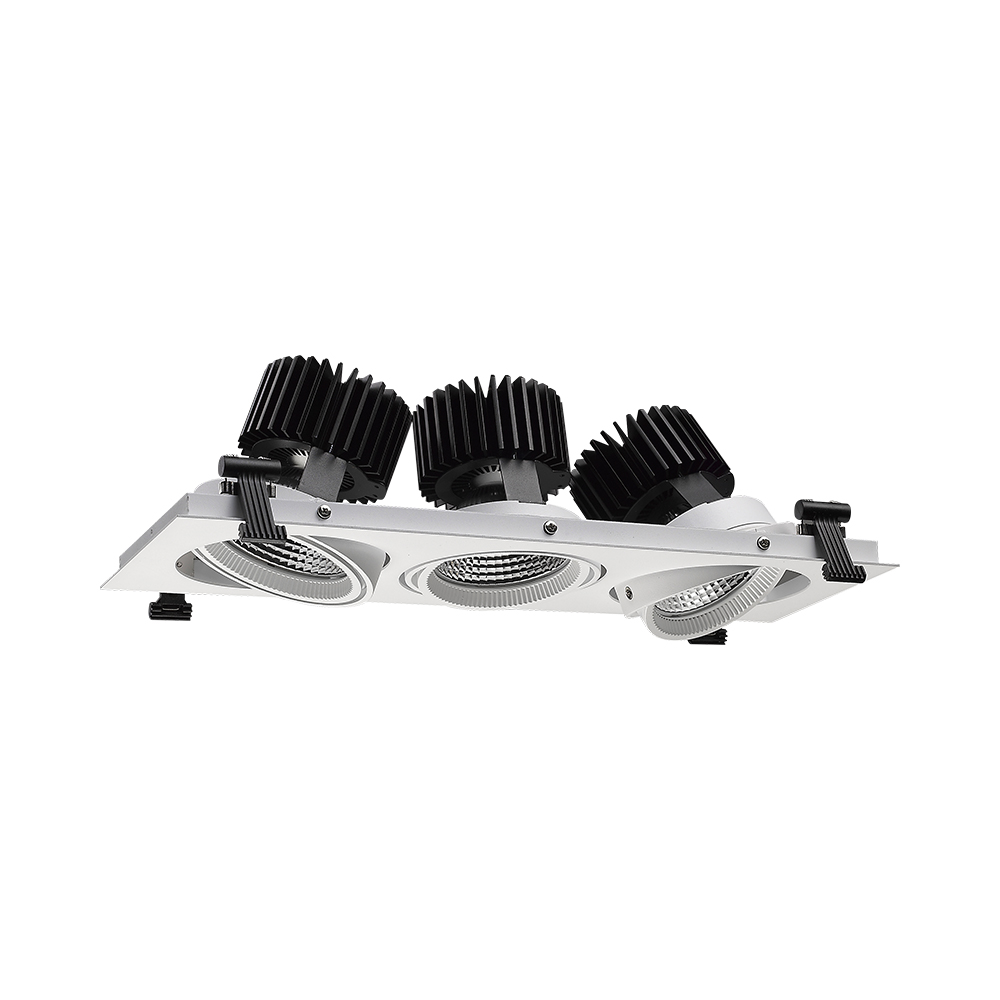

UPL-GDL-30W/35W/45W/2x30W/2x35W/2x45W/3x35W/3x45W-PLUS
Send Order Request
Download Technical

Share:

Product NameGDL PLUS LED Downlights
Power30W/35W/45W/2x30W/2x35W/2x45W/3x35W/3x45W
Input VoltageAC230V 50HZ
Light SourcesCREE/CITIZEN/TRIDONIC COB LEDs
LED DriversPHILIPS/OSRAM/TRIDONIC
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI
Housing colorWhite+Black
Lumens110-120LM/W
CCT2700K/3000K/3500K/4000K/5000K
Beam Angles15°/30°/40°/60°
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

GDL-PLUS-322-线图

ModelPowerLamp DimensionHole Cutting
UPL-GDL-30W-PLUS30WL150*W150*H133mmL140*W140mm
UPL-GDL-35W-PLUS35WL150*W150*H133mmL140*W140mm
UPL-GDL-45W-PLUS45WL170*W170*H118mmL160*W160mm
UPL-GDL-2x30W-PLUS2x30WL290*W150*H133mmL280*W140mm
UPL-GDL-2x35W-PLUS2x35WL300*W150*H110mmL285*W140mm
UPL-GDL-2x45W-PLUS2x45WL322*W170*H118mmL305*W160mm
UPL-GDL-3x35W-PLUS3x35WL410*W150*H110mmL390*W140mm
UPL-GDL-3x45W-PLUS3x45WL465*W170*H118mmL450*W160mm
