  • UPL-DL-12W/18W/25W-RT-SMD（3CCT Available）
  • UPL-DL-12W/18W/25W-RT-SMD（3CCT Available）

›

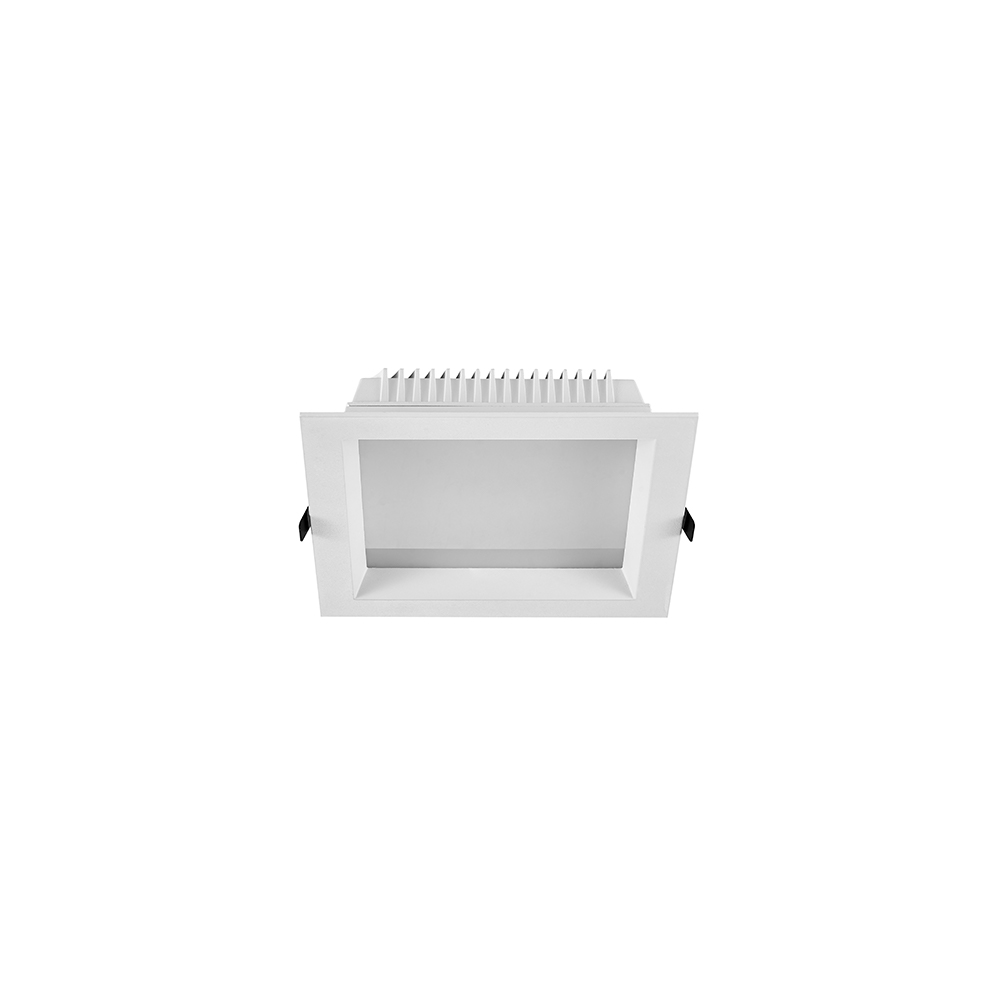

UPL-DL-12W/18W/25W-RT-SMD（3CCT Available）
Send Order Request
Download Technical

Share:

Product NameSquare RT LED Downlights
Power12W/18W/25W
Input VoltageAC230V 50HZ
Light SourcesCREE COB LEDs
LED DriversPHILIPS/OSRAM/TCI
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI/DIP-3CCT
Housing colorWhite
FunctionAdjustable 3CCT (Available)
Lumens110-120LM/W
CCT2700K/3000K/4000K/5000K/3CCT-3000K-4000K-6000K
Beam Angles110°
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs


ModelPowerLamp DimensionHole Cutting
UPL-DL-12W-RT-SMD12WL120*W120*H51mmL105*W105mm
UPL-DL-18W-RT-SMD18WL167*W167*H54mmL145*W145mm
UPL-DL-25W-RT-SMD25WL215*W215*H55mmL185*W185mm
