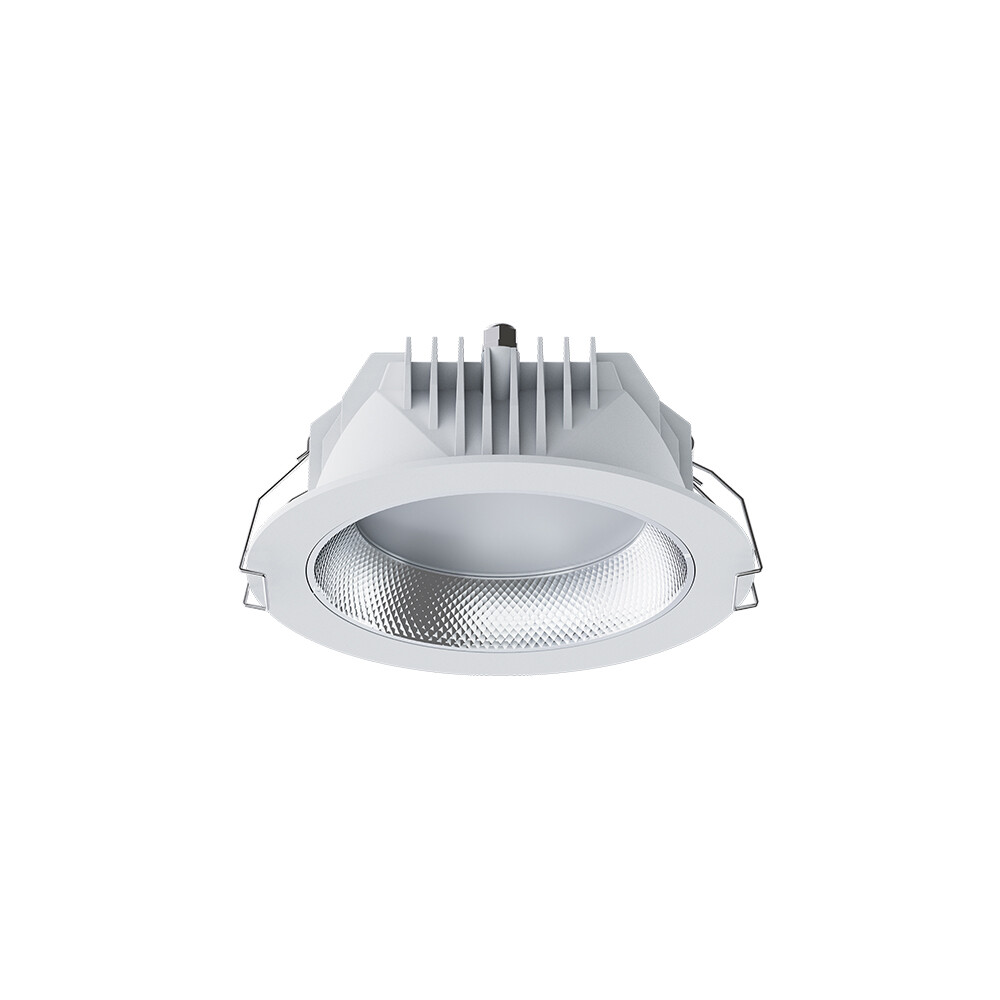

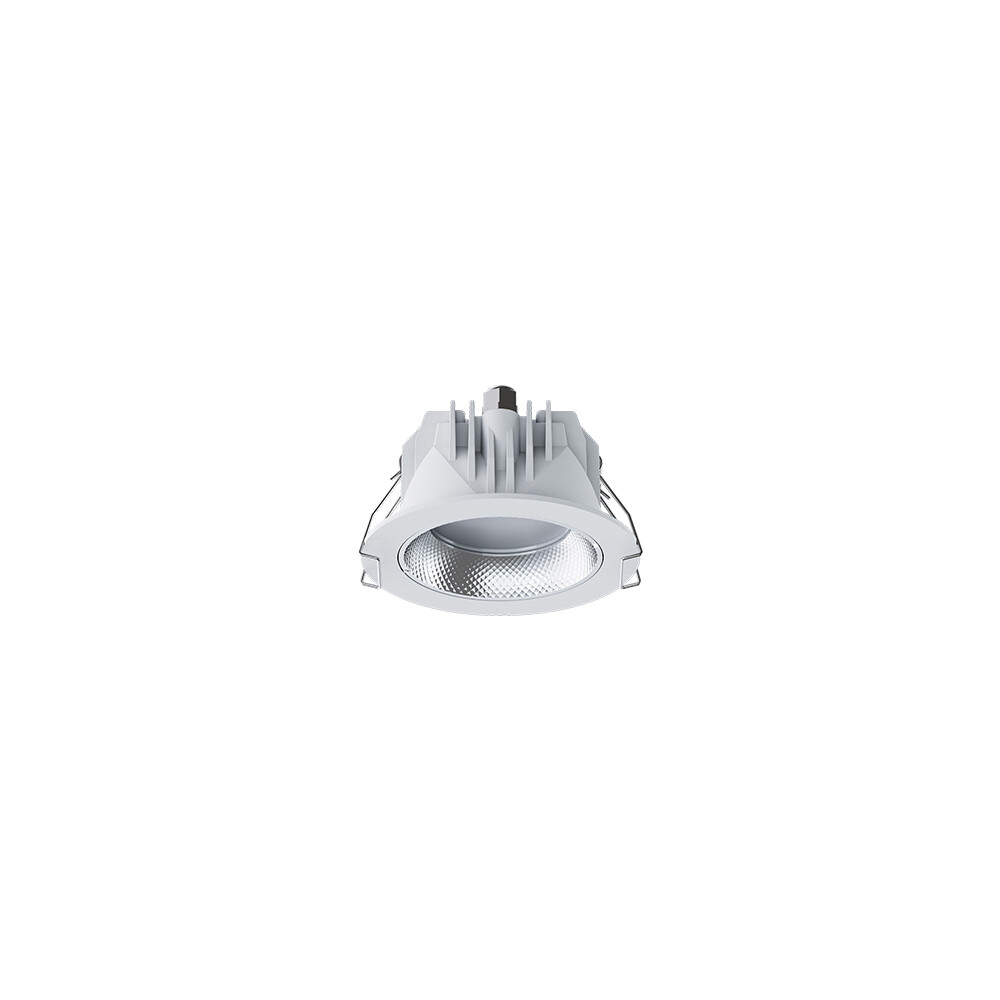

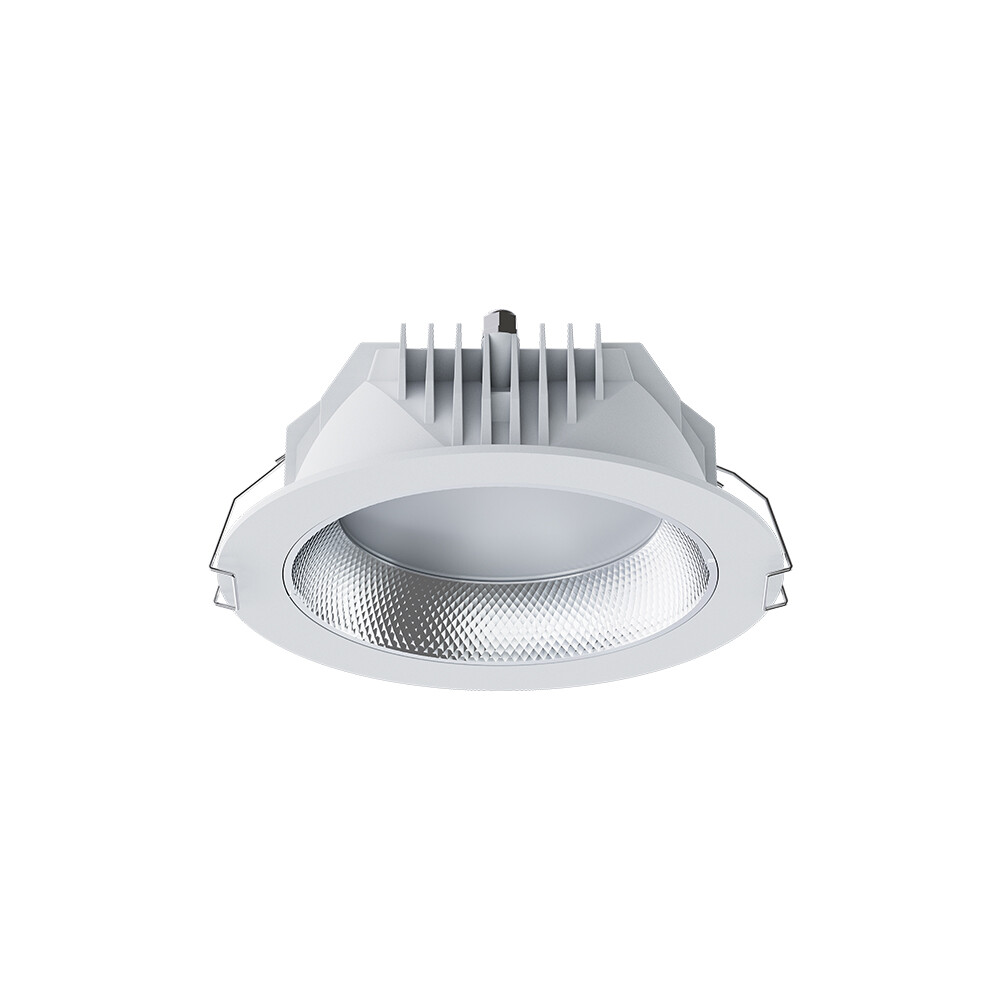

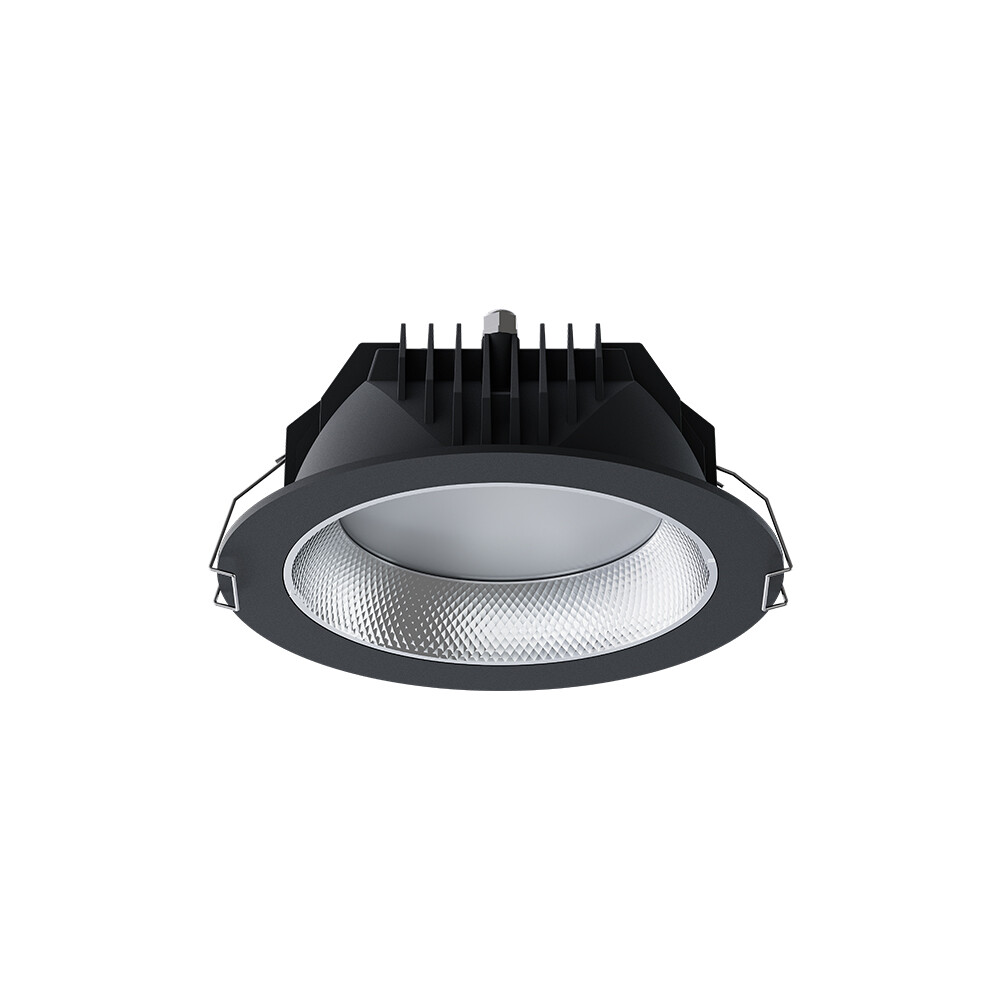

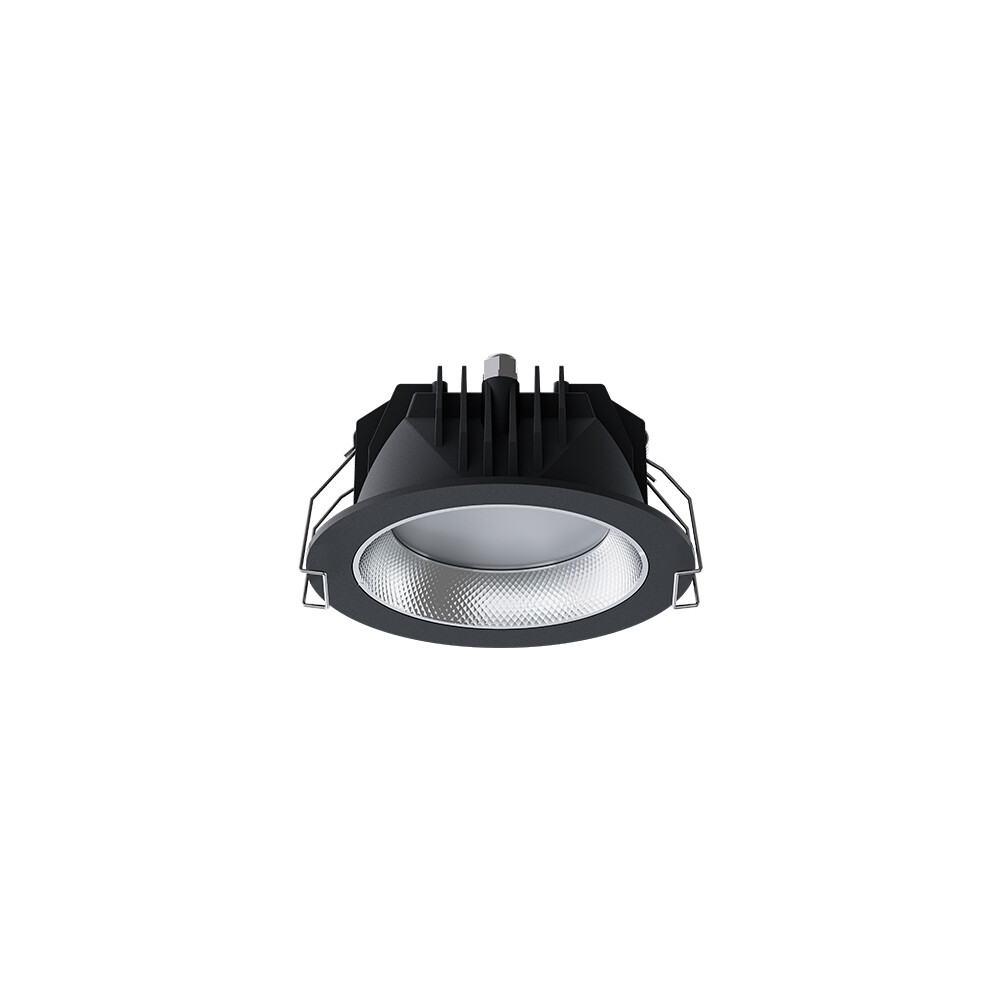

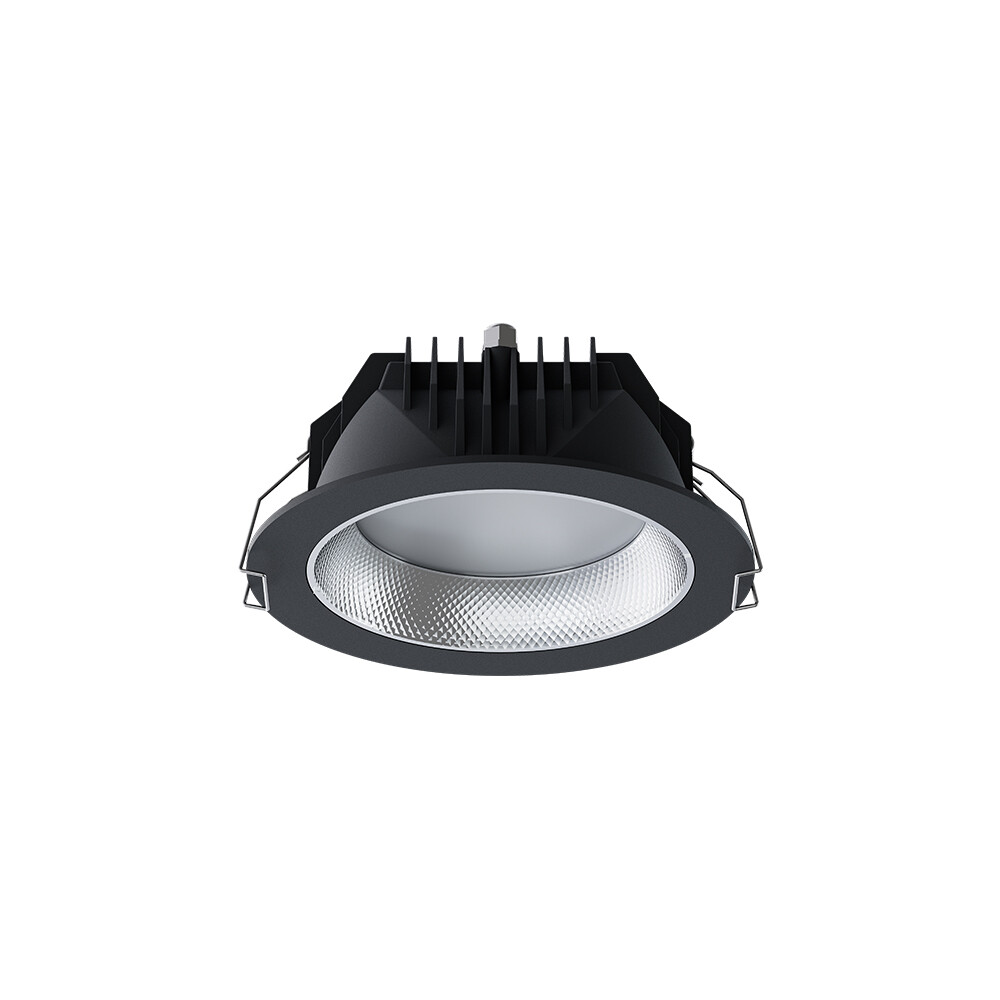

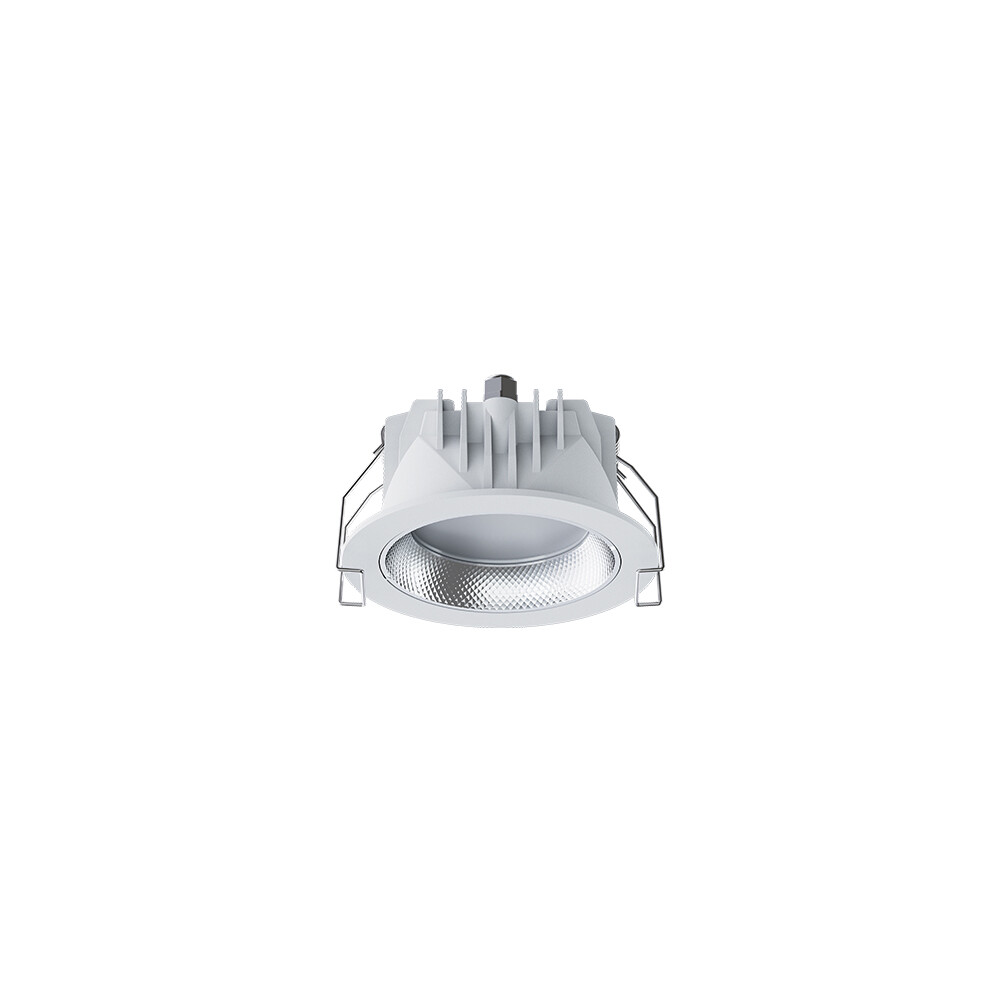

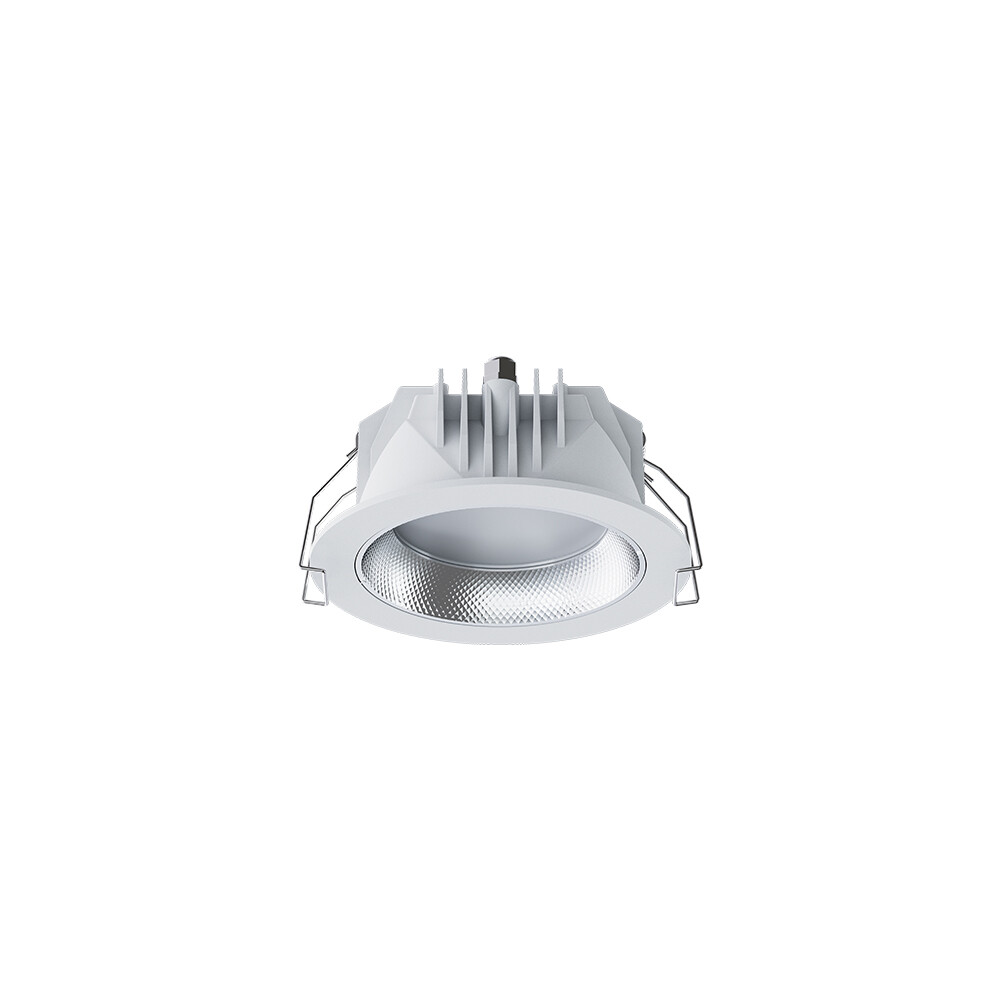

UPL-RDL-10W/15W/20W/30W/40W-SMD
Send Order Request
Download Technical

Share:

Product NameRDL SMD LED Downlight
Power10W/15W/20W/30W/40W
Input VoltageAC230V 50HZ
Light SourcesCREE SMD LEDs
LED DriversPHILIPS/OSRAM/TCI
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI
Housing colorWhite/Black
WaterproofIP54
Lumens110-120LM/W
CCT2700K/3000K/3500K/4000K/5000K
Beam Angles110°
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

ModelPowerLamp DimensionHole Cutting
UPL-RDL-10W-SMD10WDia95*H48mmDia75-85mm
UPL-RDL-15W-SMD15WDia110*H53mmDia90-100mm
UPL-RDL-20W-SMD20WDia135*H61mmDia110-125mm
UPL-RDL-30W-SMD30WDia175*H70mmDia140-165mm
UPL-RDL-40W-SMD40WDia195*H72mmDia160-185mm
