UPL-DL-SM-V2-10W/20W/30W/40W/50W/60W
Send Order Request
Download Technical

Share:

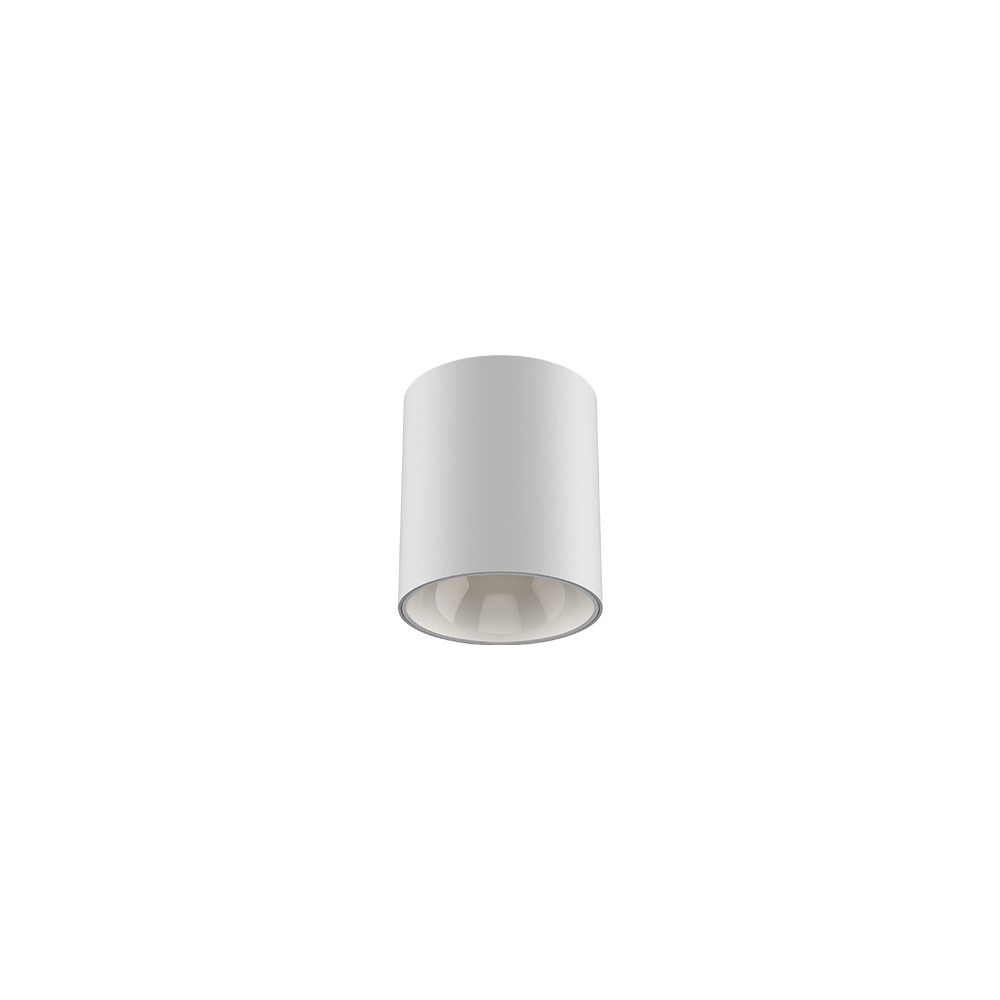

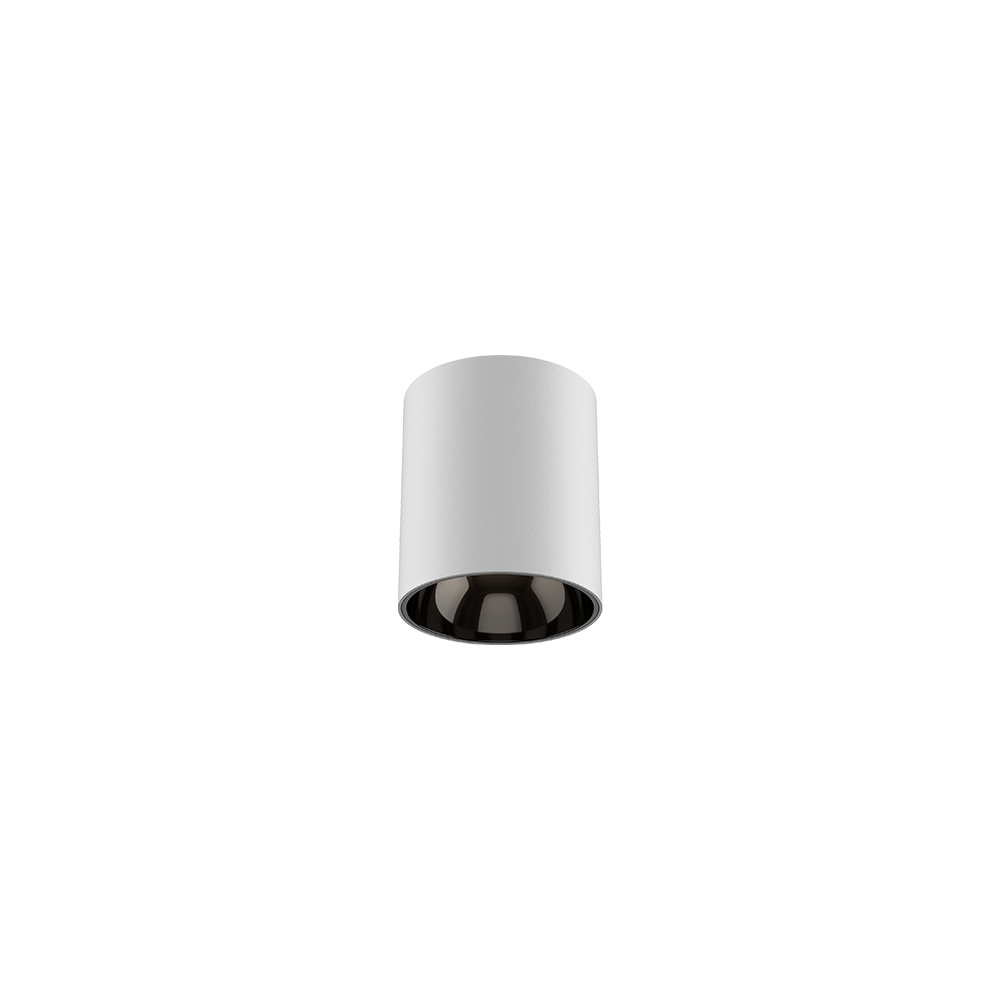

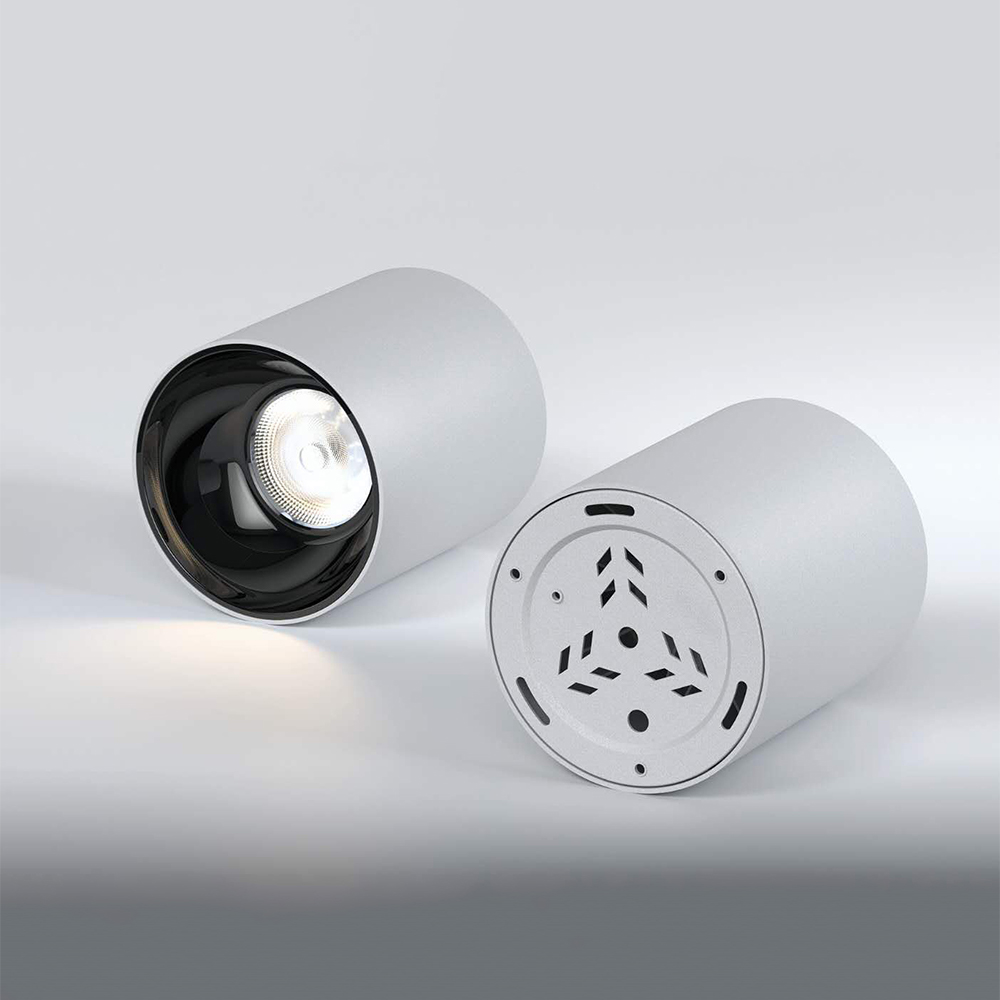

Product NameV2 Surface LED Downlights
Power10W/20W/30W/40W/50W/60W
Input VoltageAC230V 50HZ
Waterproof rated IP65 front

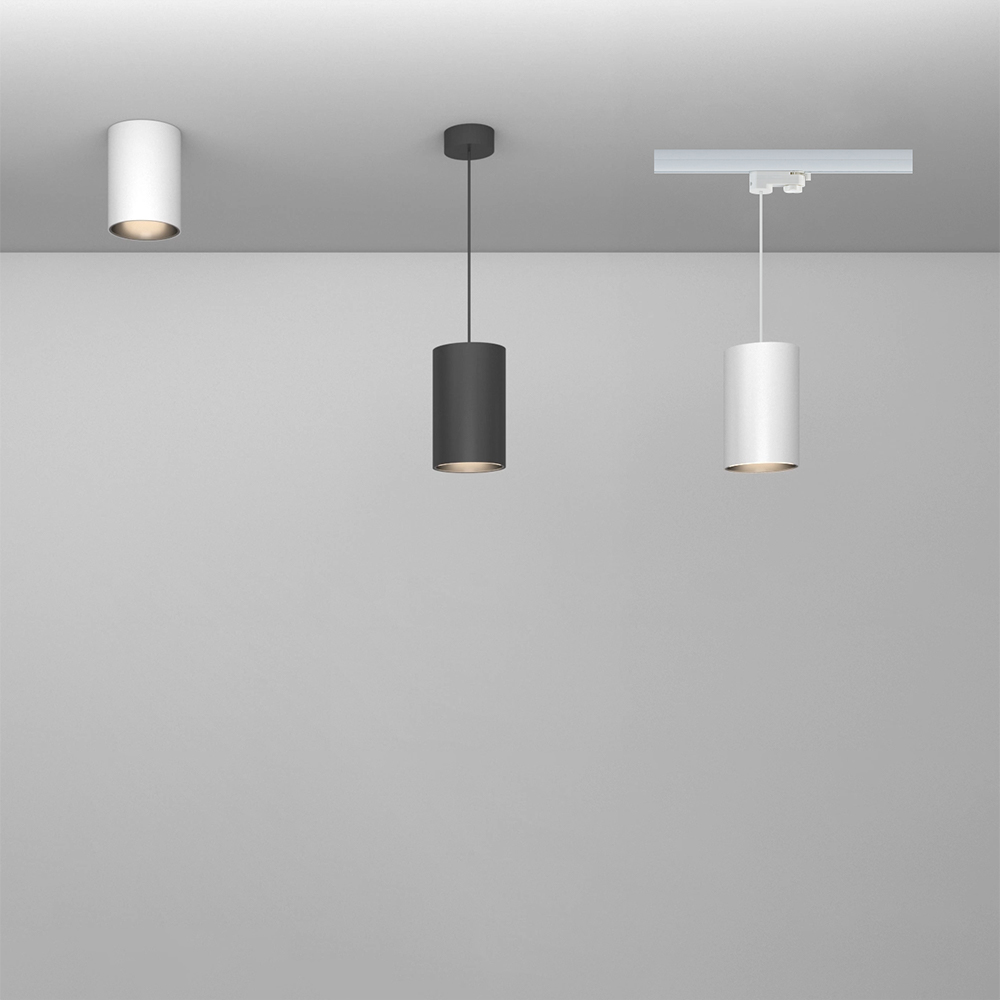

InstallationSurface mounted/ Suspended
Light SourcesCREE COB LEDs
LED DriverPhilips
Beam Angles20°/45°
DimmingDALI/1-10V/Triac
CCT2700K/3000K/3500K/4000K/5000K
CRI80/90
Lumens100-110LM/W

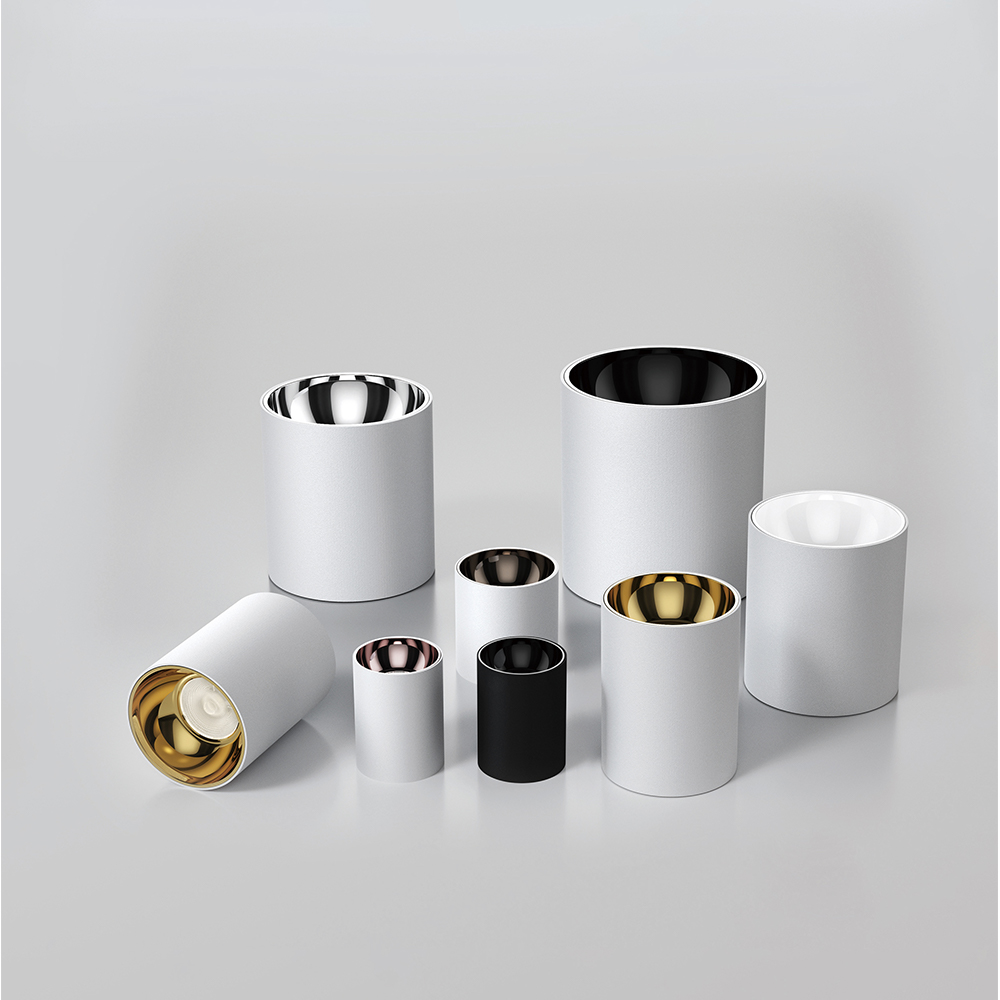

Reflectors colorGolden/Black/White/Silver
Housing colorBlack/White/Grey
Housing materialAluminum
CertificatesCE &RoHS

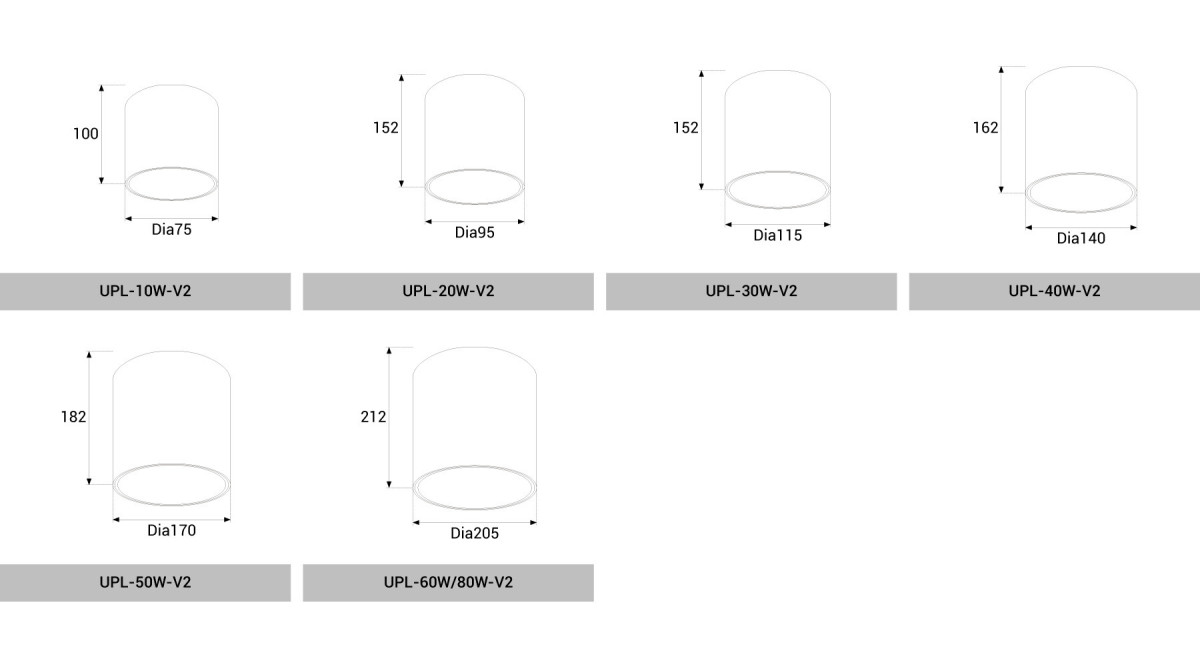

V2-Surface-线图

ModelPowerLamp Dimension
UPL-DL-10W-SM-V210WDia75*H100mm
UPL-DL-20W-SM-V220WDia95*H152mm
UPL-DL-30W-SM-V230WDia115*H152mm
UPL-DL-40W-SM-V240WDia140*H162mm
UPL-DL-50W-SM-V250WDia170*H182mm
UPL-DL-60W-SM-V260WDia205*H212mm
