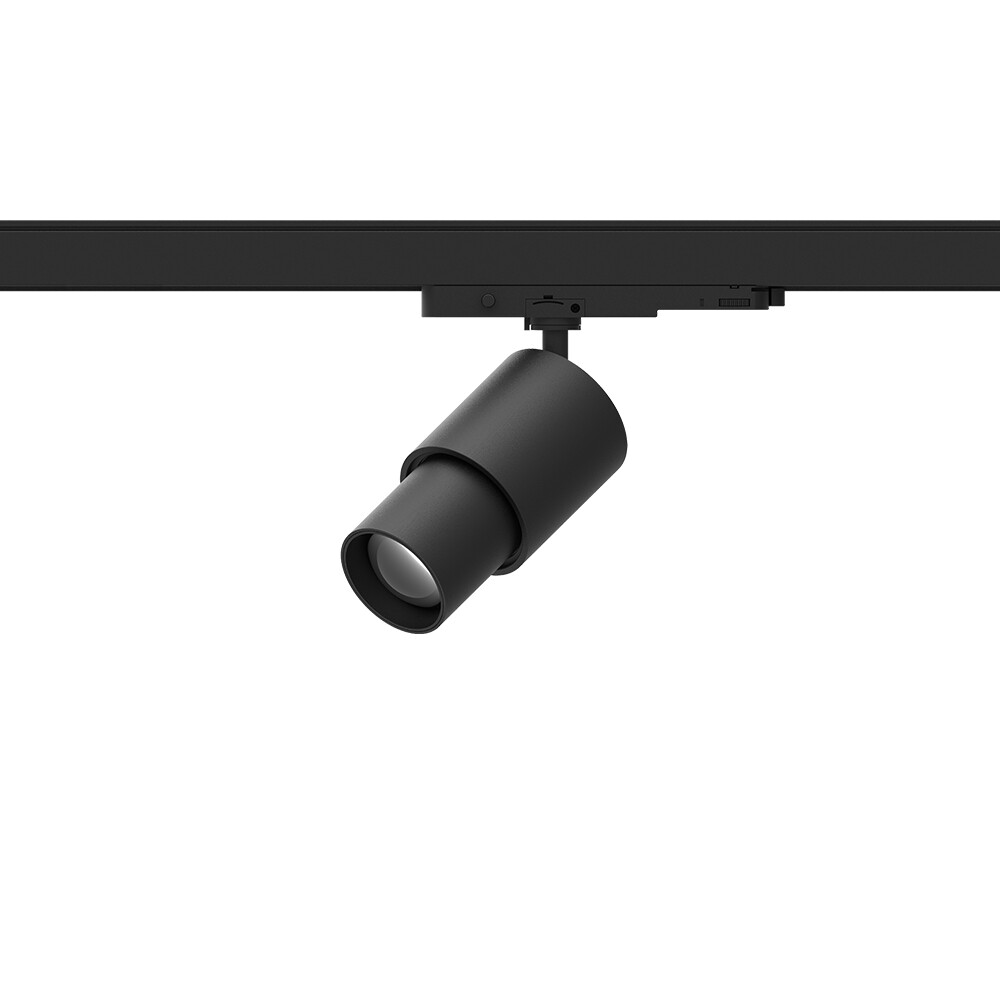

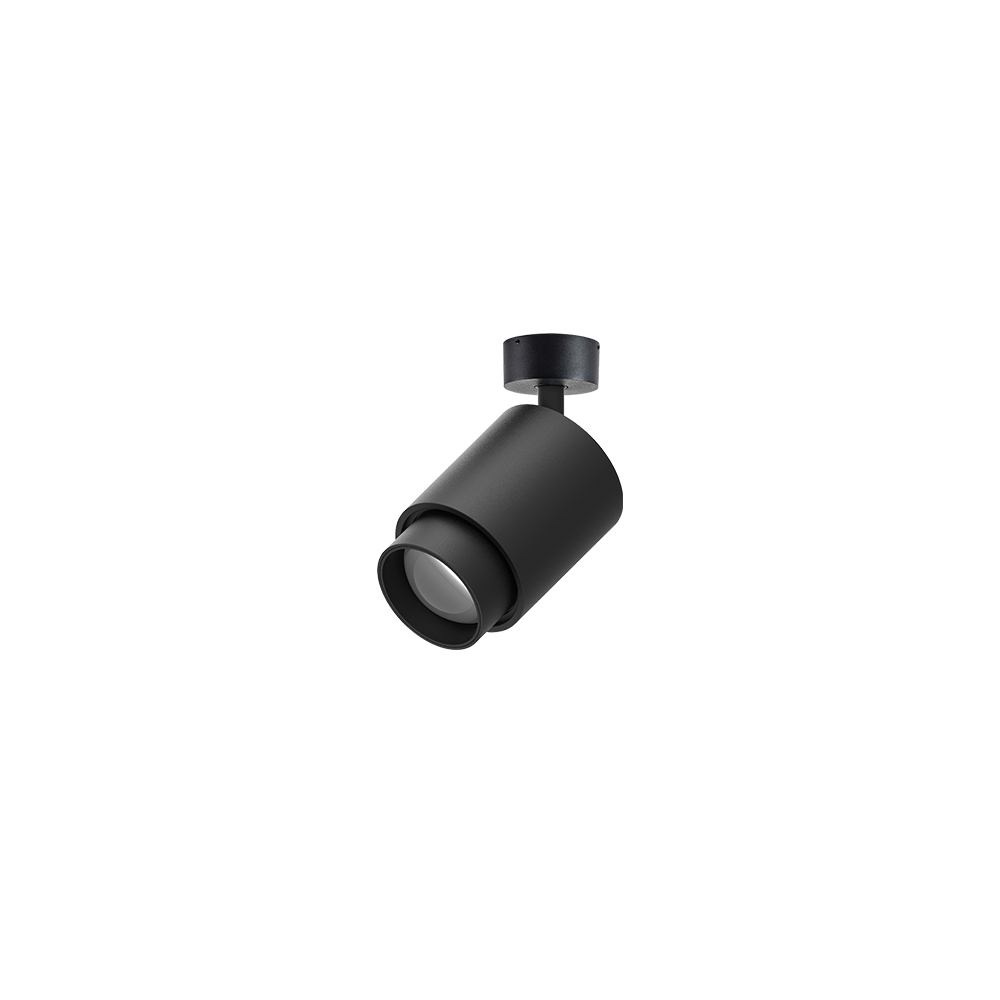

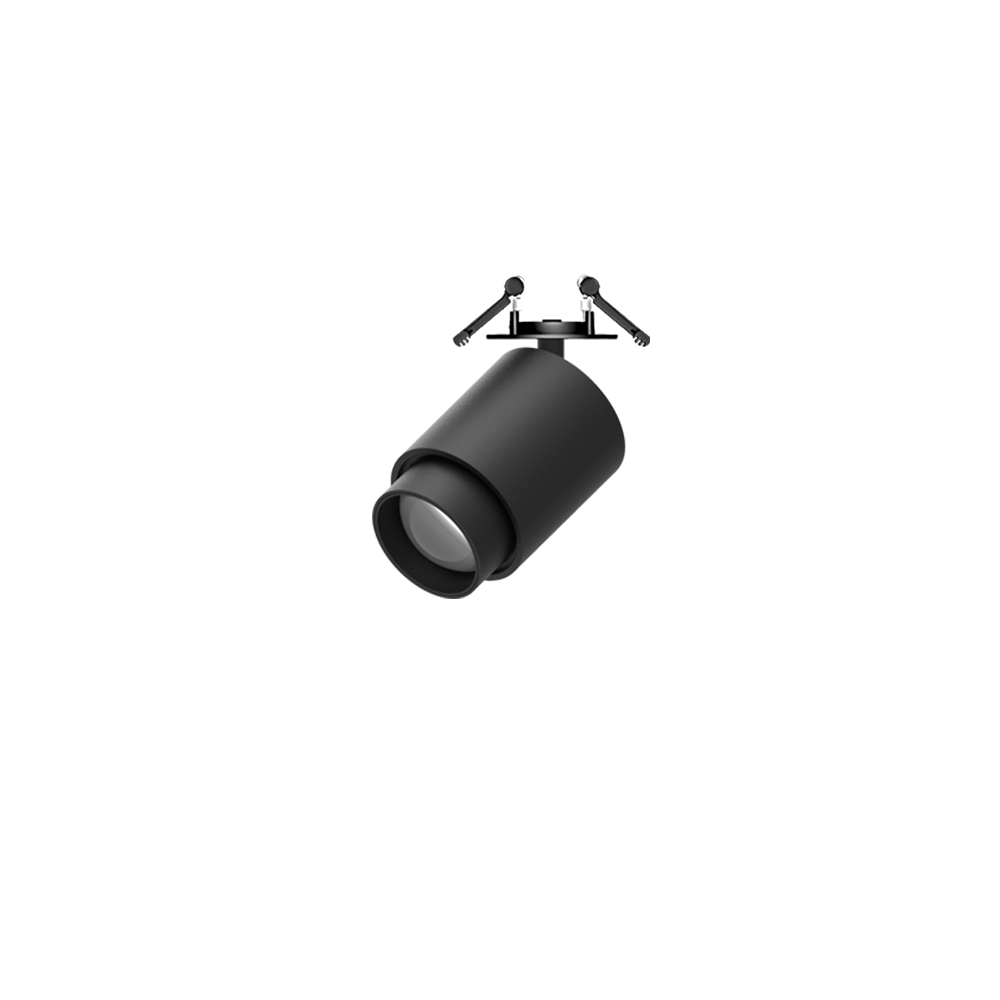

Zoomable Track Spotlights AJD3 20W-35W
Send Order Request
Download Technical

Share:

Product NameAJD3 ZOOMABLE LED Track Lights
Power20W/25W/30W
Input VoltageAC230V 50HZ
Light SourcesCREE/CITIZEN/PHILIPS/TRIDONIC COB LEDs
LED DriverGlobal/TCI/Tridonic
DimmingDALI/Zigbee/Casambi/Knob Dimming
ConnectionEuropean standard 4-wire / 6-wire
Housing colorBlack/White/Grey
Lumens100-110LM/W
CCT2700K/3000K/3500K/4000K/5000K
Beam Angles6°~60°
Function

Knob Dimming+ CCT adjustable+zoomable

Knob Dimming+Dim-to-warm+zoomable

Power adjustable+CCT adjustable+ zoomable

InstallationTrack rail/Surface mounted/Recessed
CRICRI≥80/90 (CRI97 is available)
MaterialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

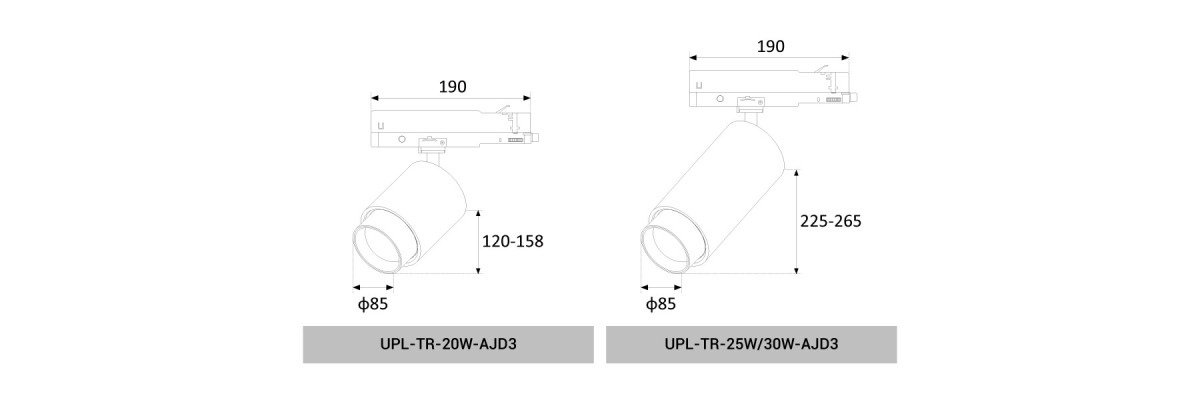

AJD3线图

ModelPowerLamp Dimension
UPL-TR-15W-AJD315WDia71*H125-168mm
UPL-TR-20W-AJD320WDia85*H120~158mm
UPL-TR-25W-AJD325WDia85*H225~265mm
UPL-TR-30W-AJD330WDia85*H225~265mm

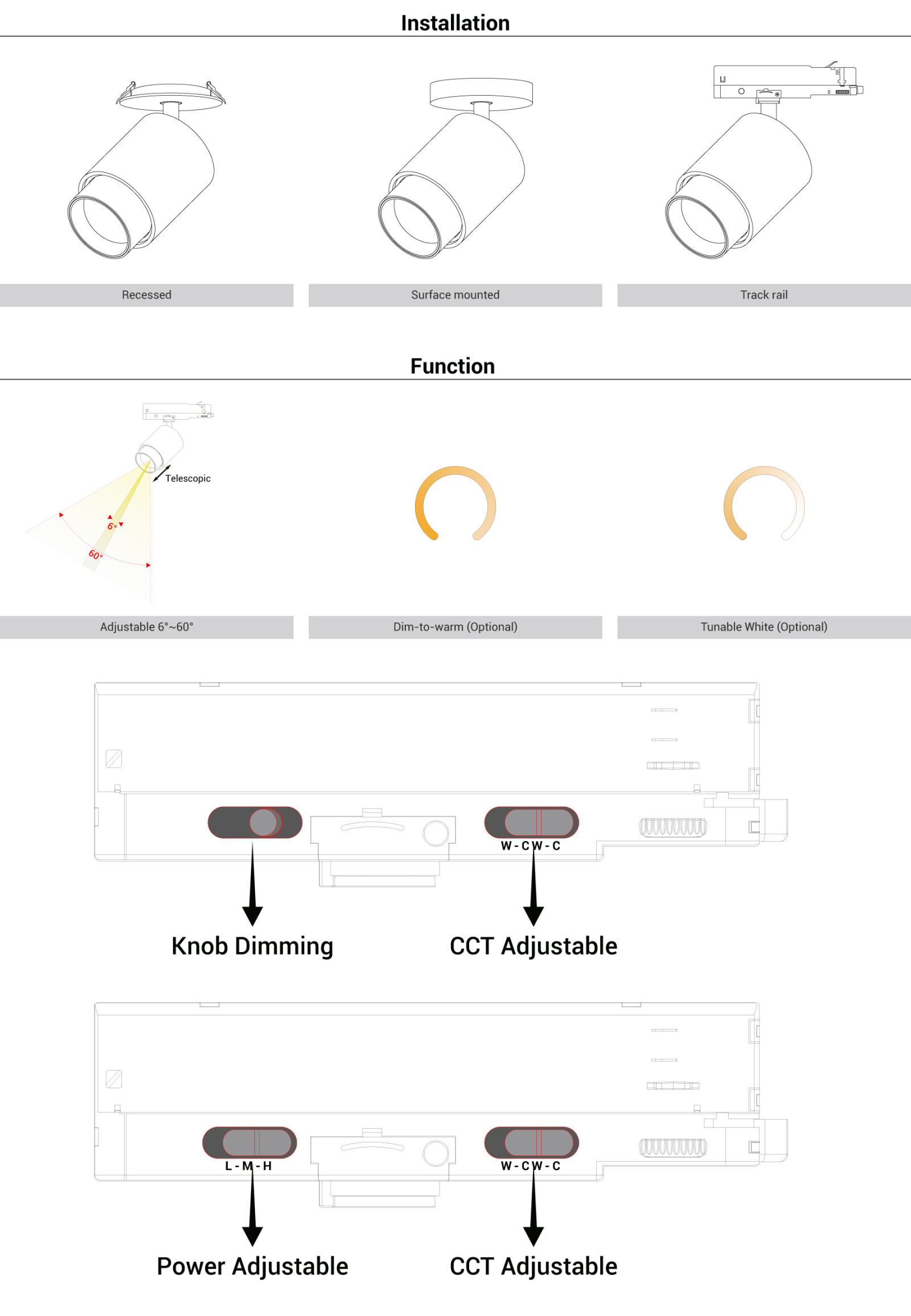

ADJ3-FUNCTION
