Frameless Caterpillar LED Downlights（2W/4W/10W/20W/30W）
Send Order Request

Share:



Lamp Parameters


Product NameFrameless Caterpillar LED Downlights
Power2W / 4W / 10W / 20W / 30W
Input VoltageAC230V 50HZ
Light SourceCREE 3535 LEDs
LED DriversKG / PHILIPS
DimmingDALI/1-10V/Triac
CCT2700K / 3000K / 4000K / 5000K
Lumens100-110LM/W
CRI≥80/90
Beam Angle15°/30°/45°
Housing ColorWhite Frame + Grey Heatsink
CertificatesCE & RoHS


Lamp Options

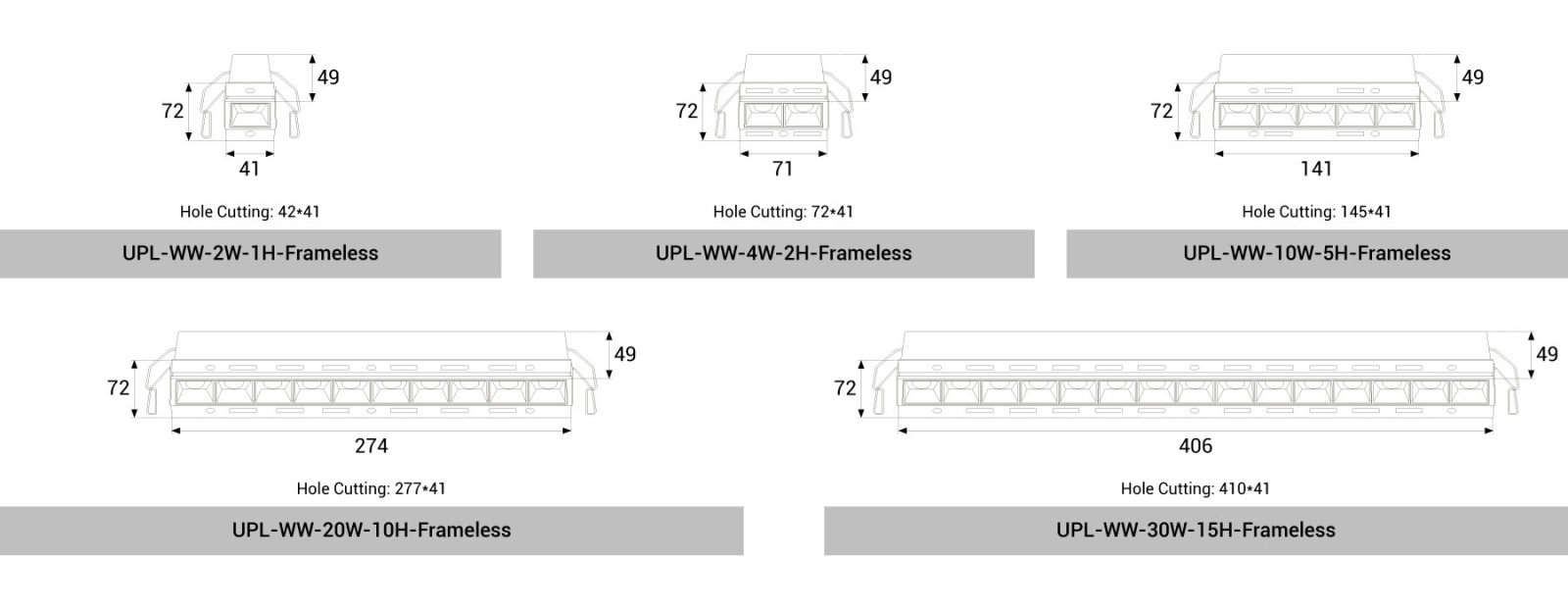

ModelPowerLamp DimensionHole Cutting
UPL-WW-2W-1H-Frameless2WL72*W41*H49mmL42*W41mm
UPL-WW-4W-2H-Frameless4WL72*W71*H49mmL72*W41mm
UPL-WW-10W-5H-Frameless6WL141*W72*H49 mmL145*W41mm
UPL-WW-20W-10H-Frameless20WL274*W72*H49mmL277*W41mm
UPL-WW-30W-15H-Frameless30WL406*W72*H49 mmL410*W41mm
