V2 Caterpillar LED Downlights（4W/12W/15W/20W/36W/40W）
Send Order Request

Share:


Lamp Parameters


Product NameV2 Caterpiller LED Downlights
Power4W / 12W / 15W / 20W / 36W / 40W
Input VoltageAC230V 50HZ
Light SourceOSRAM 5050
LED DriversPHILIPS
DimmingDALI / 1-10V / Triac
CCT2700K / 3000K / 4000K / 5000K
Lumens110-120LM/W
CRI≥80/90
Beam Angle15° / 24° / 38° / 48° / 48°x48° / 70°x70° / 35°x70°
Housing ColorWhite Frame + Grey Heatsink
CertificatesCE & RoHS


Lamp Options

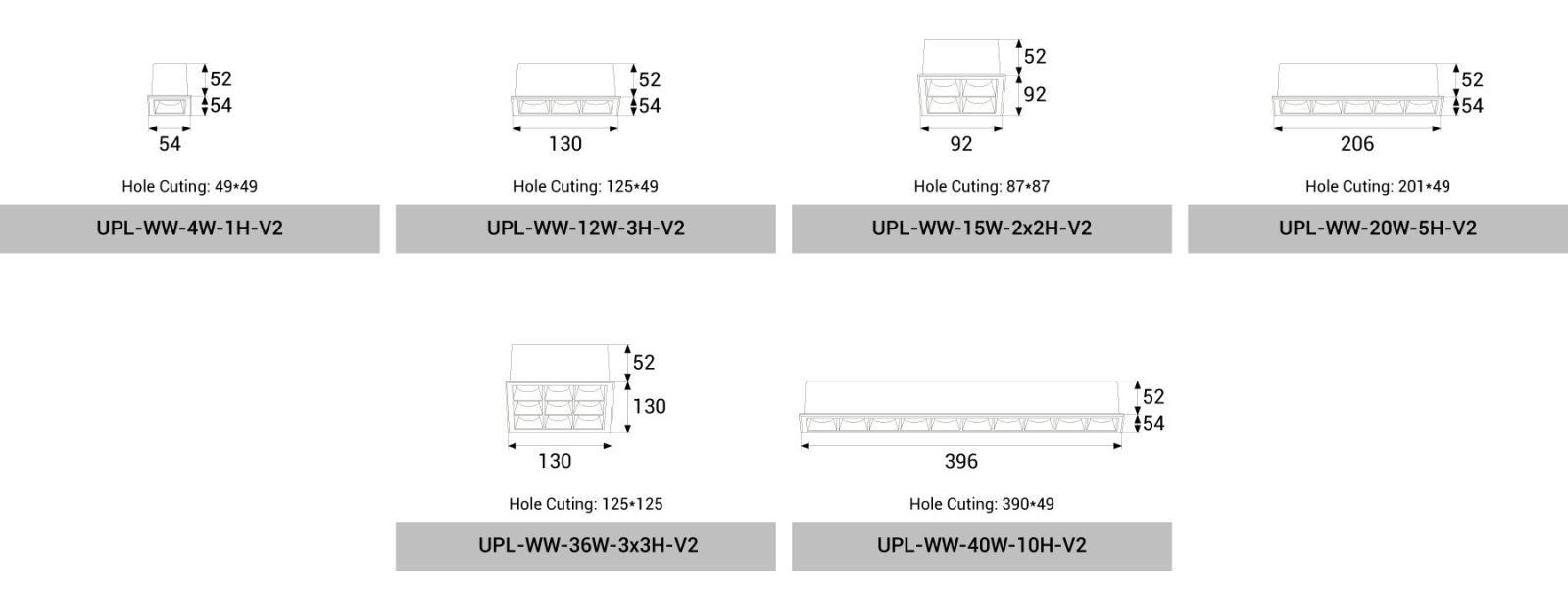

ModelPowerLamp DimensionHole Cutting

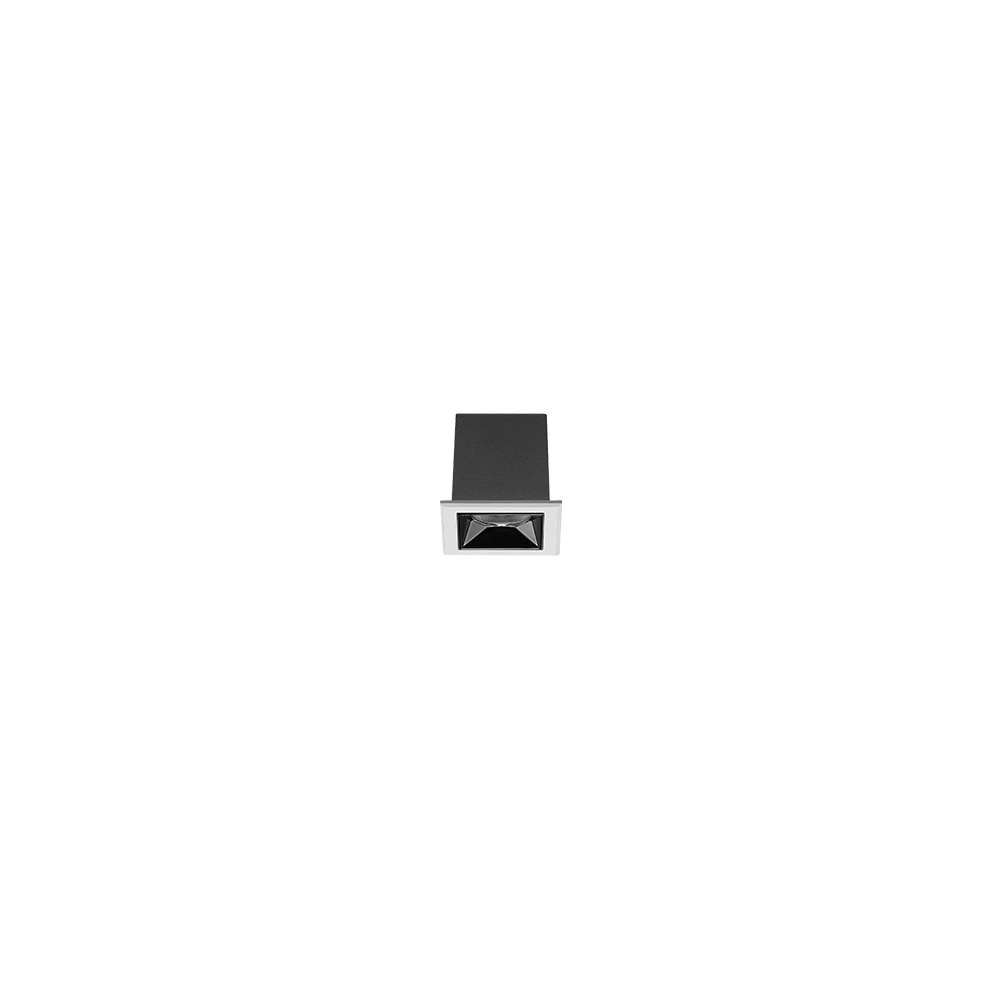

UPL-WW-4W-1H-V24WL54*W54*H50 mmL49*W49 mm

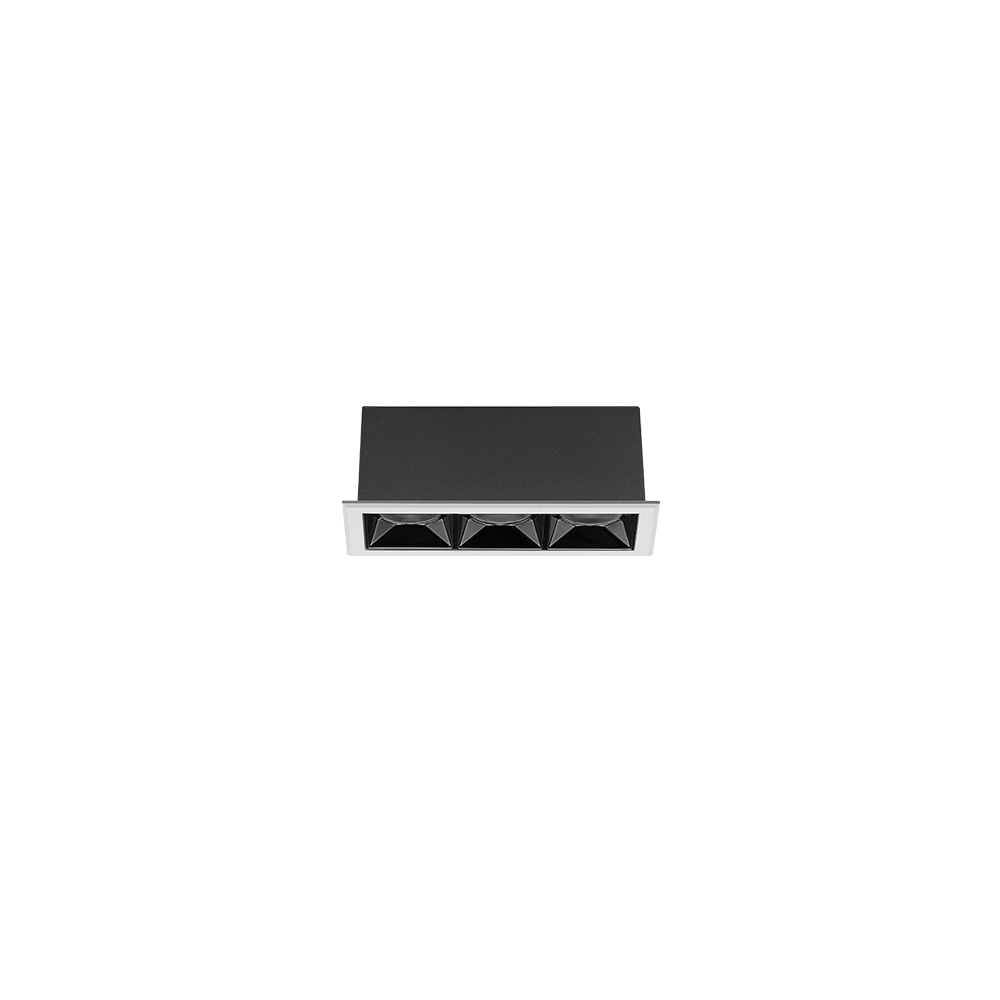

UPL-WW-12W-3H-V212WL130*W54*H52 mmL125*W49 mm

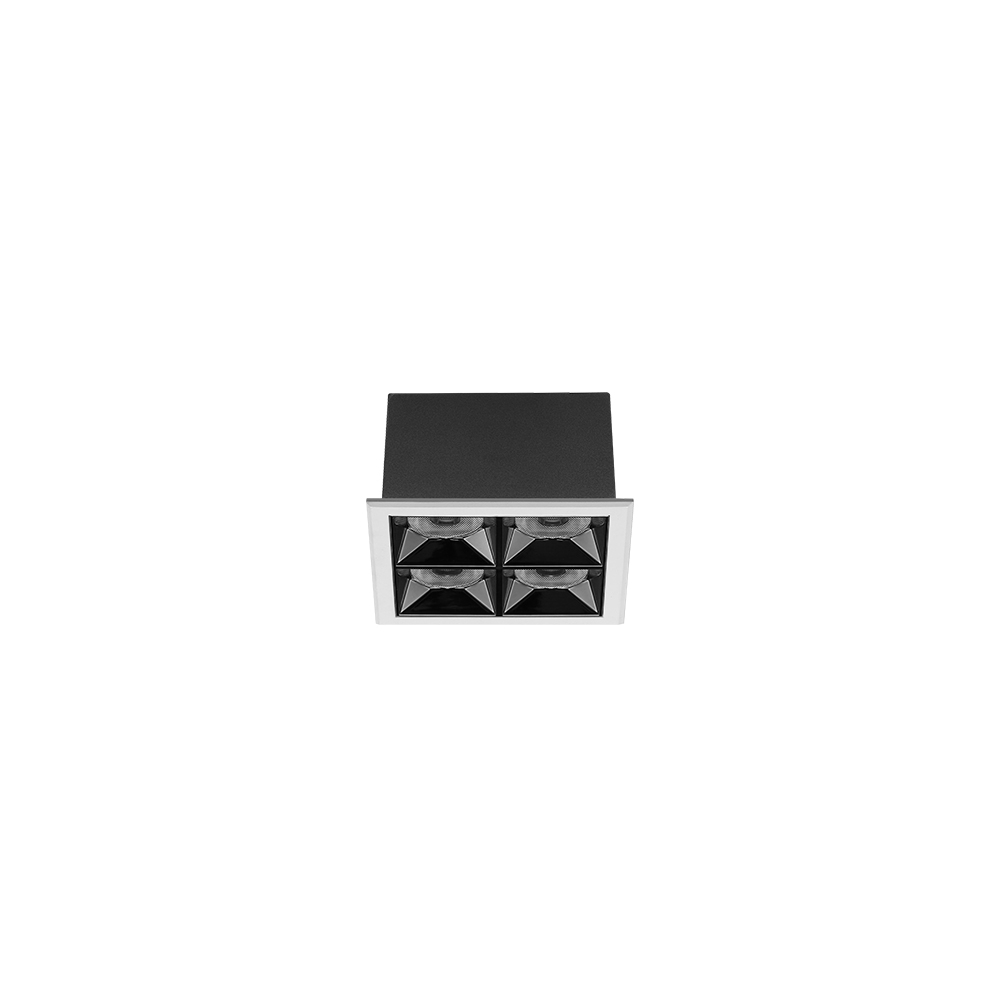

UPL-WW-15W-2x2H-V215WL92*W92*H52 mmL87*W87 mm

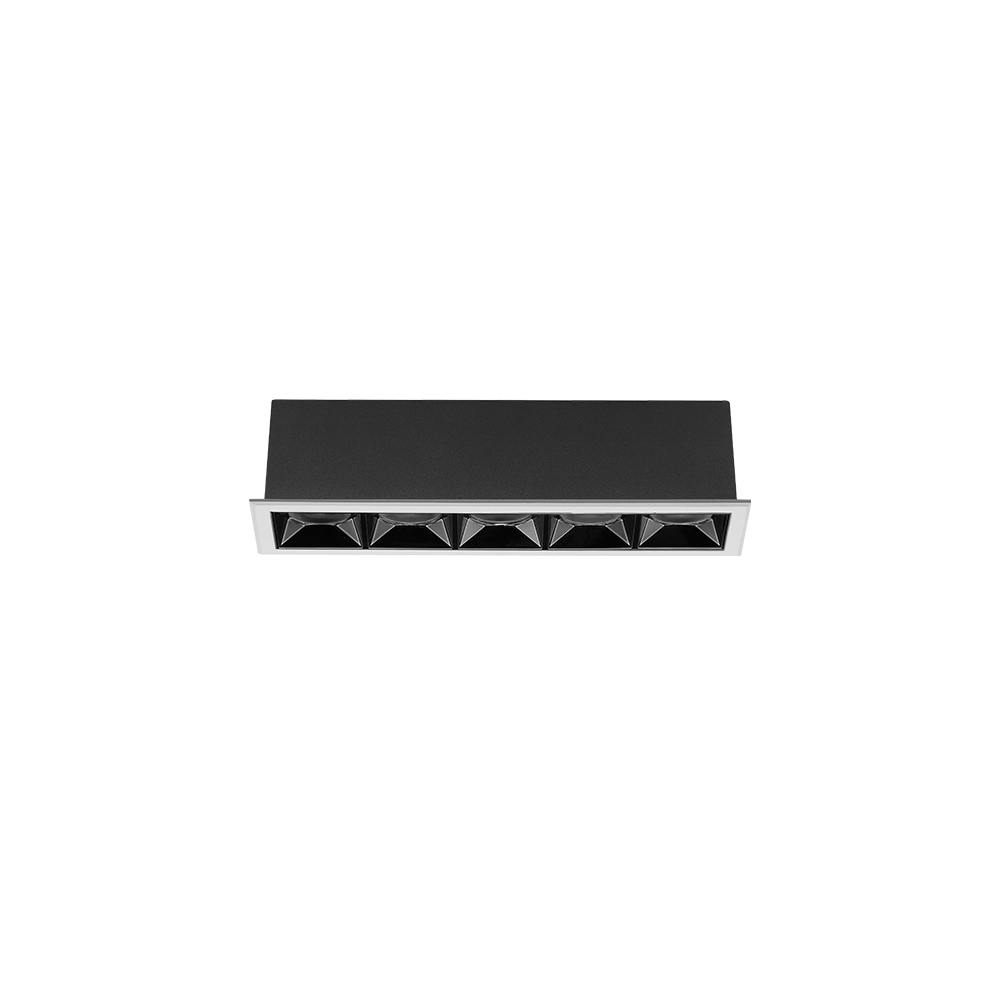

UPL-WW-20W-5H-V220WL206*W54*H52 mmL201*W49 mm

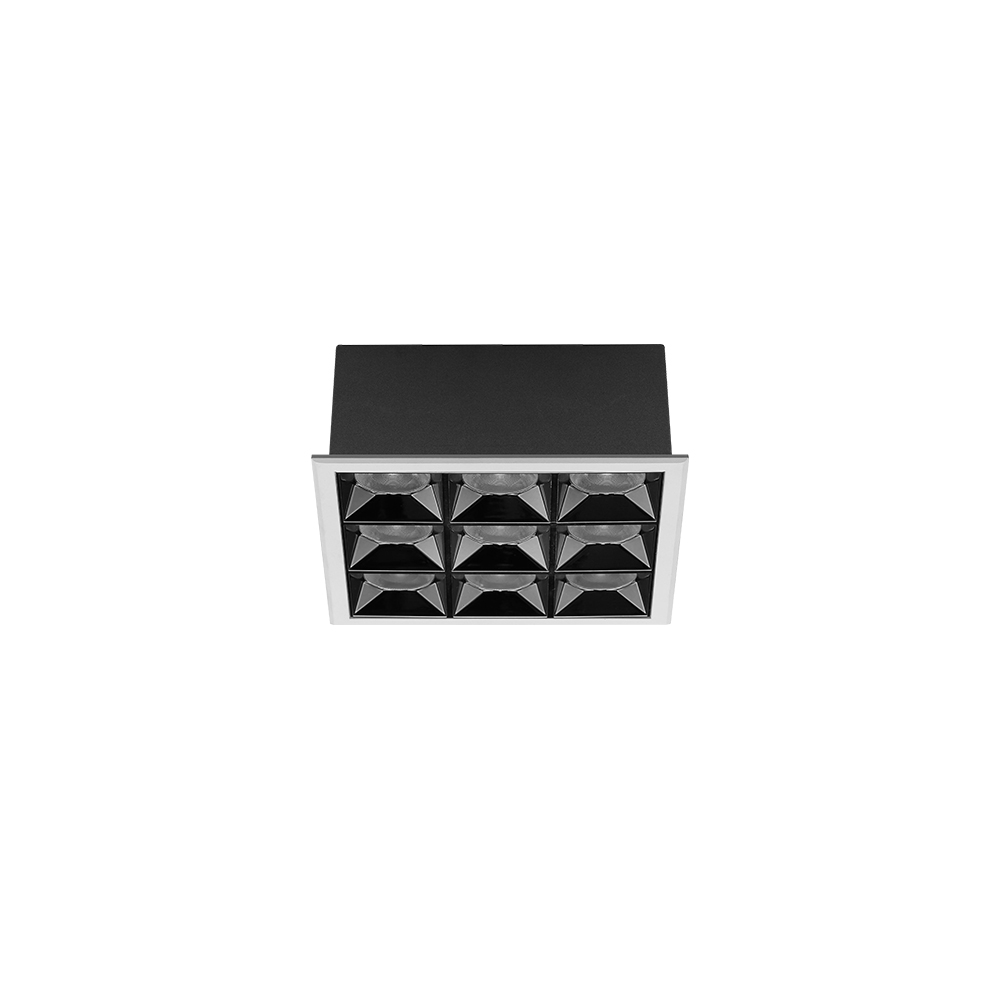

UPL-WW-36W-3x3H-V236WL130*W130*H52 mmL125*W125 mm
UPL-WW-40W-10H-V240WL396*W54*H52 mmL390*W49 mm
