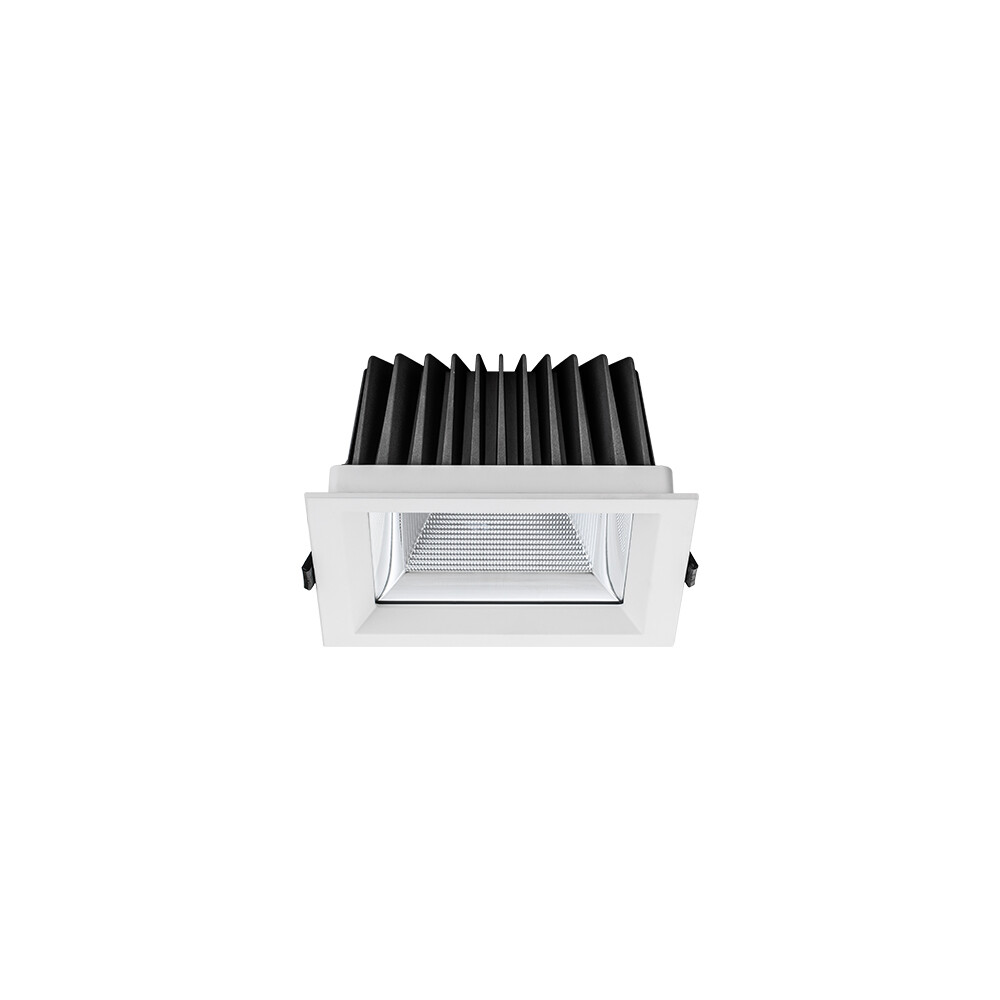

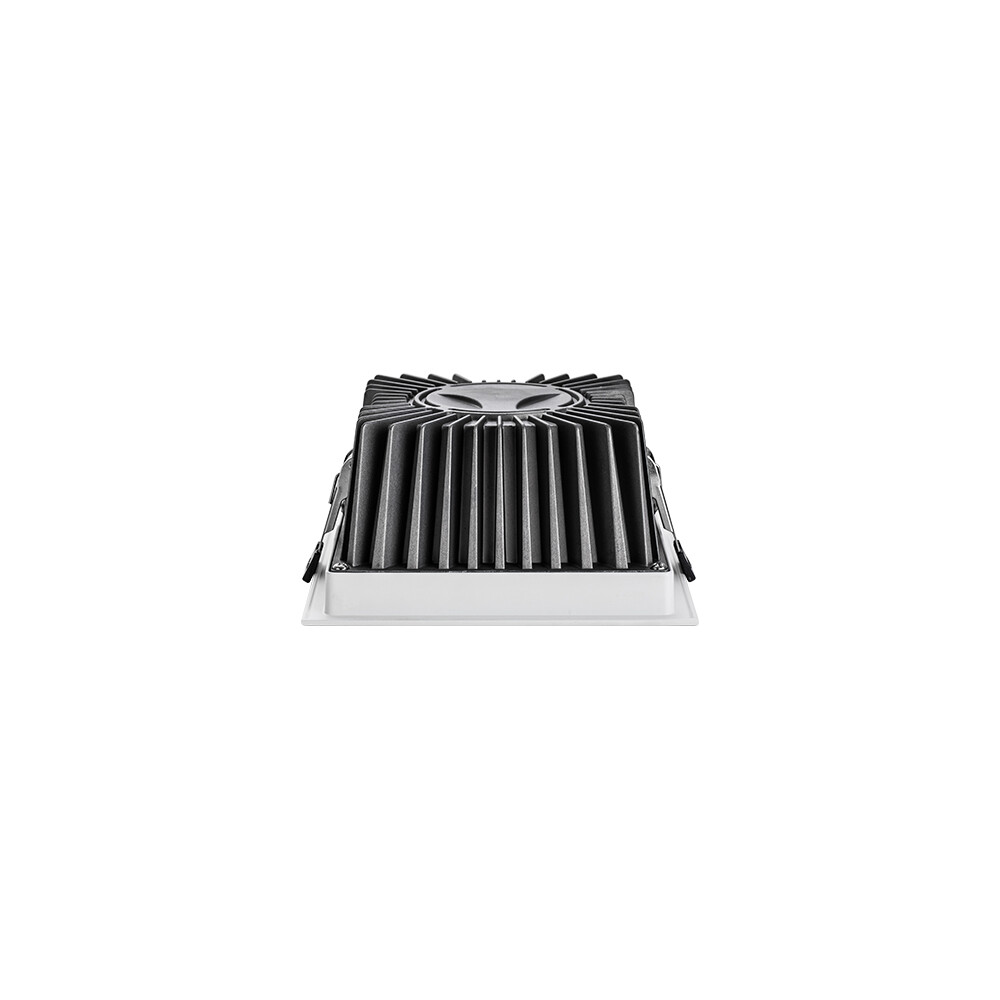

UPL-DL-15W/20W/30W/45W-CAMELLIA-IP65
Send Order Request

Share:

Product NameIP65 CAMELLIA LED Downlights
Power15W/20W/30W/45W
Input VoltageAC230V 50HZ
Light SourcesCREE COB LEDs
LED DriversTRIDONIC/PHILIPS/OSARM/TCI
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI
Housing colorWhite+Black
WaterproofIP65
Lumens110-120LM/W
CCT2700K/3000K/3500K/4000K/5000K
Beam Angles60°
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

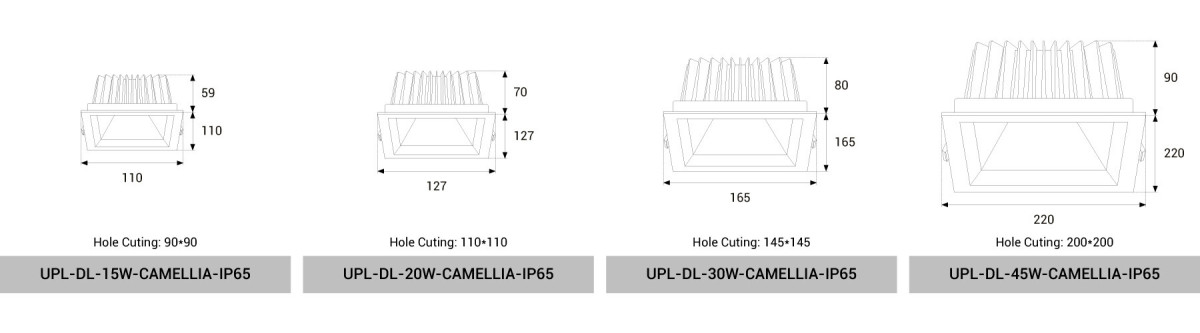

ModelPowerLamp DimensionHole Cutting
UPL-DL-15W-CAMELLIA-IP6515WL110*W110*H59mmL90*W90mm
UPL-DL-20W-CAMELLIA-IP6520WL127*W127*H70mm L110*W110mm
UPL-DL-30W-CAMELLIA-IP6530WL165*W165*H80mm L145*W145mm
UPL-DL-45W-CAMELLIA-IP6545WL220*W220*H90mmL200*W200mm
