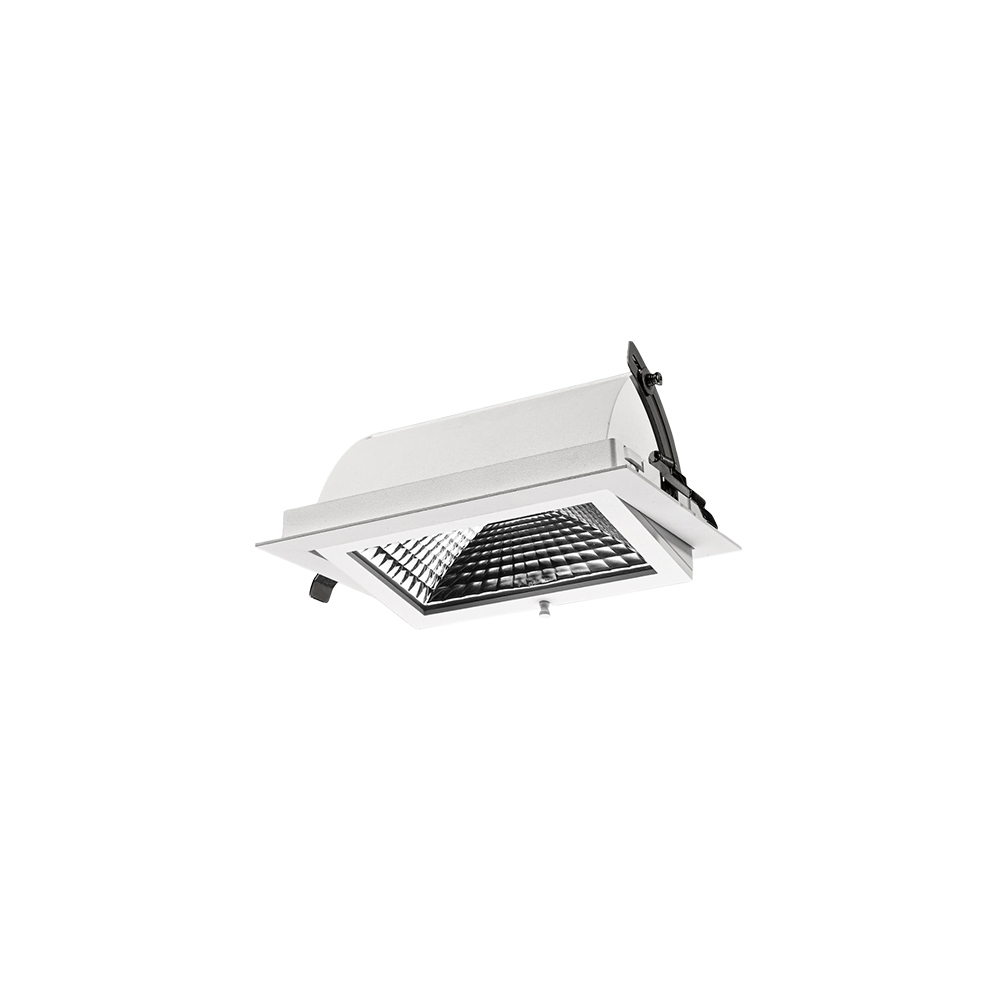

Product NameCOB Rectangular LED Downlights
Power20W/30W/40W/45W
Input VoltageAC230V 50HZ
Light SourcesCREE/CITIZEN/TRIDONIC COB LEDs
LED DriversPHILIPS/OSRAM/TRIDONIC
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI
Housing colorWhite/Grey/Black
Lumens110-120LM/W
CCT2700K/3000K/3500K/4000K/5000K
Beam Angles60°
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

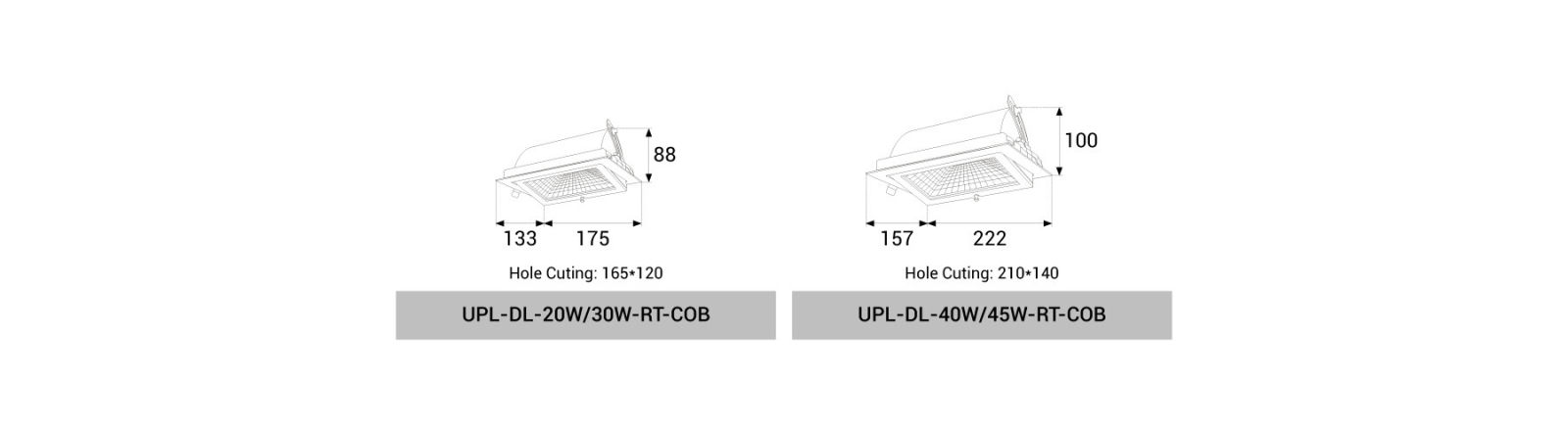

ModelPowerLamp DimensionHole Cutting
UPL-DL-20W-RT-COB20WL175*W133*H88mmL165*W120mm
UPL-DL-30W-RT-COB30WL175*W133*H88mmL165*W120mm
UPL-DL-40W-RT-COB40WL222*W157*H100mmL210*W140mm
UPL-DL-45W-RT-COB45WL222*W157*H100mmL210*W140mm
