  • UPL-DL-5W/10W/15W/20W/30W/40W-ELEGANT-COB

›

UPL-DL-5W/10W/15W/20W/30W/40W-ELEGANT-COB
Send Order Request
Download Technical

Share:

Product NameCOB ELEGANT LED Downlights
Power5W/10W/15W/20W/30W/40W
Input VoltageAC230V 50HZ
Light SourcesCREE/CITIZEN COB LEDs
LED DriversPHILIPS/OSRAM/TRIDONIC
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI
Housing colorWhite
Reflector colorWhite/Black/Silver/Shiny
Lumens110-120LM/W
CCT2700K/3000K/3500K/4000K/5000K
Beam Angles60°
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

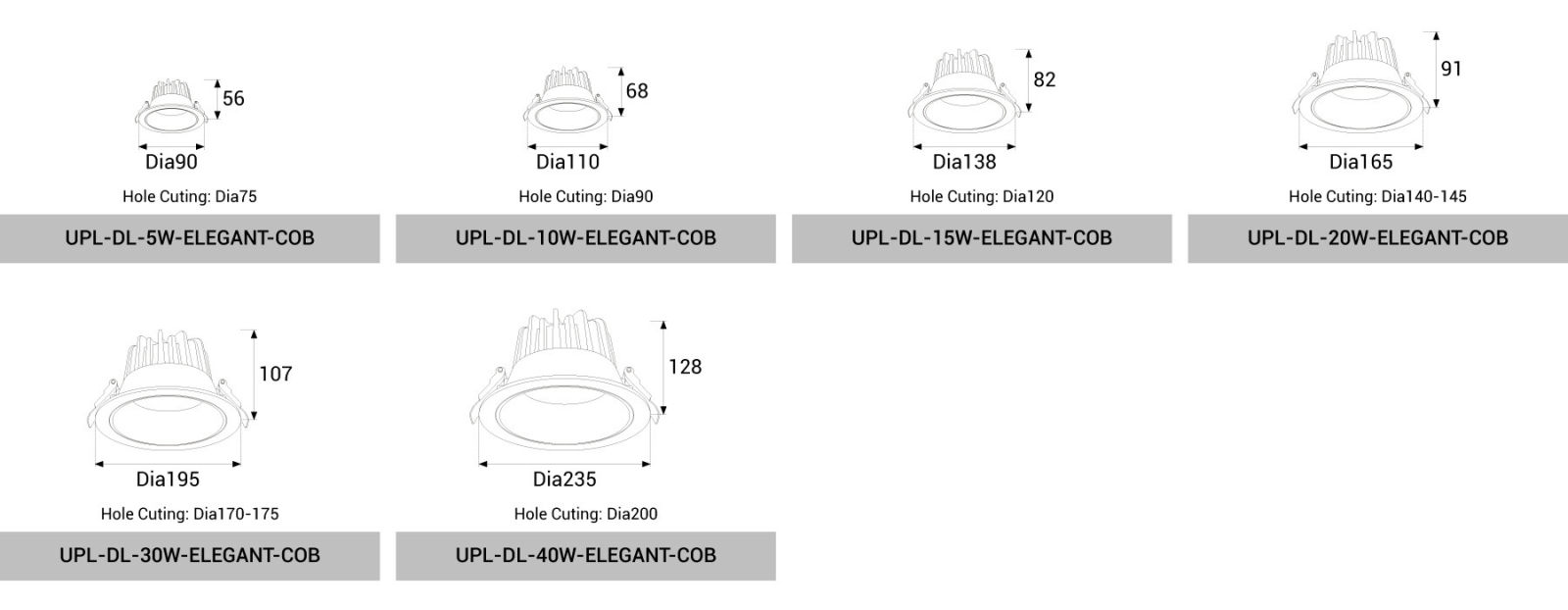

Elegant-COB-线图

ModelPowerLamp DimensionHole Cutting
UPL-DL-5W-ELEGANT-COB5WDia90*H56mmDia75mm
UPL-DL-10W-ELEGANT-COB10WDia110*H68mmDia90mm
UPL-DL-15W-ELEGANT-COB15WDia138*H82mmDia120mm
UPL-DL-20W-ELEGANT-COB20WDia165*H91mmDia140-145mm
UPL-DL-30W-ELEGANT-COB30WDia195*H107mmDia170-175mm
UPL-DL-40W-ELEGANT-COB40WDia235*H128mmDia200mm
