UPL-DL-10W/15W/25W/30W/35W/40W/45W//55W-QG
Send Order Request

Share:

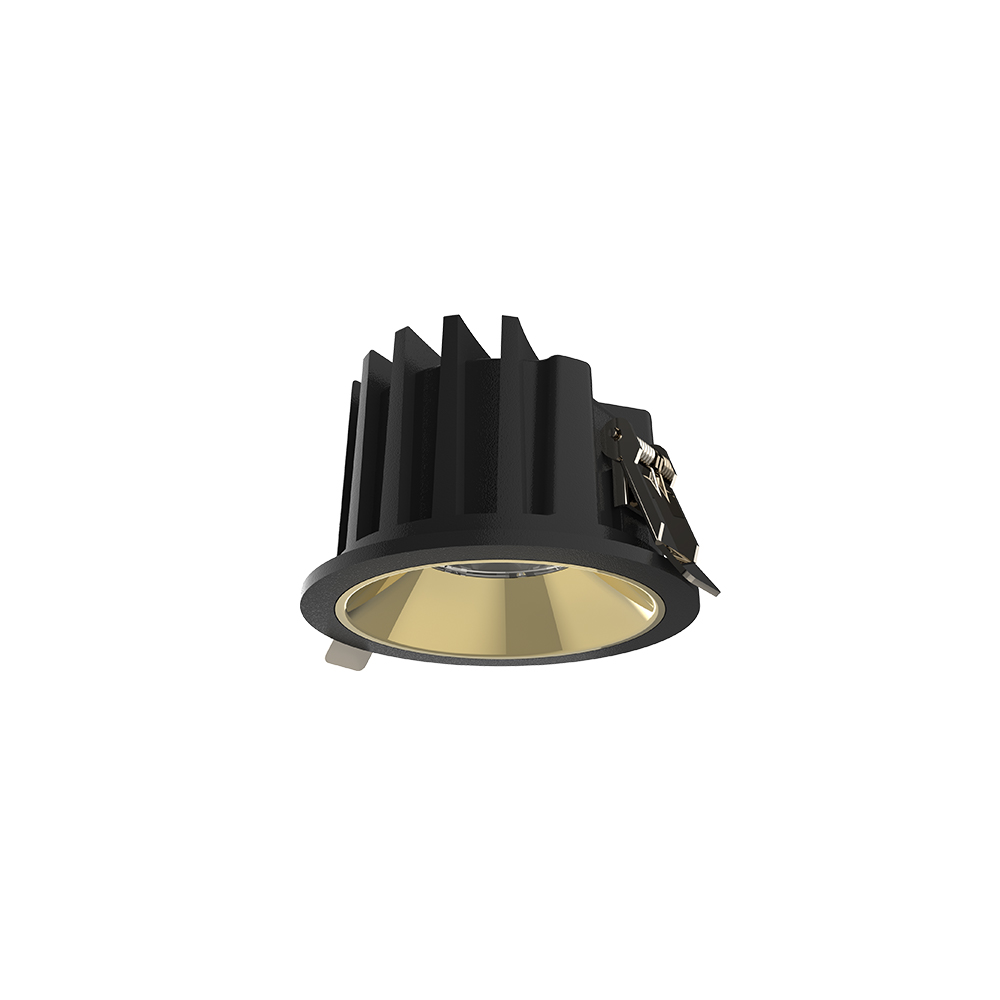

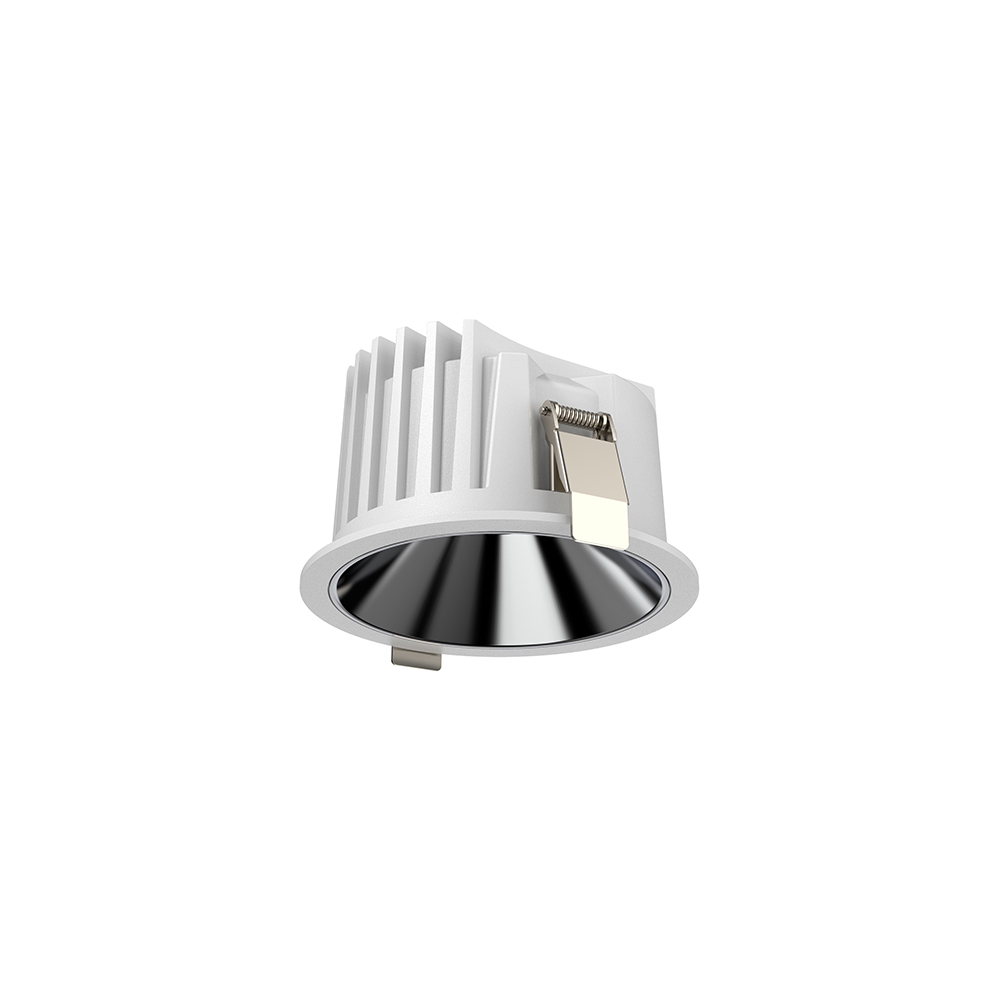

Product NameQG LED Downlights
Power10W/15W/25W/30W/35W/40W/45W/55W
Input VoltageAC230V 50HZ
Light SourcesCITIZEN/CREE COB LEDs
LED DriversPHILIPS/DALI DT8 TUNABLE WHITE
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI
Housing colorWhite/Black
Reflector colorBlack/White/Silver/Golden
Lumens110-120LM/W
CCT2700K/3000K/3500K/4000K/5000K
Beam Angles20°/36°/60°
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

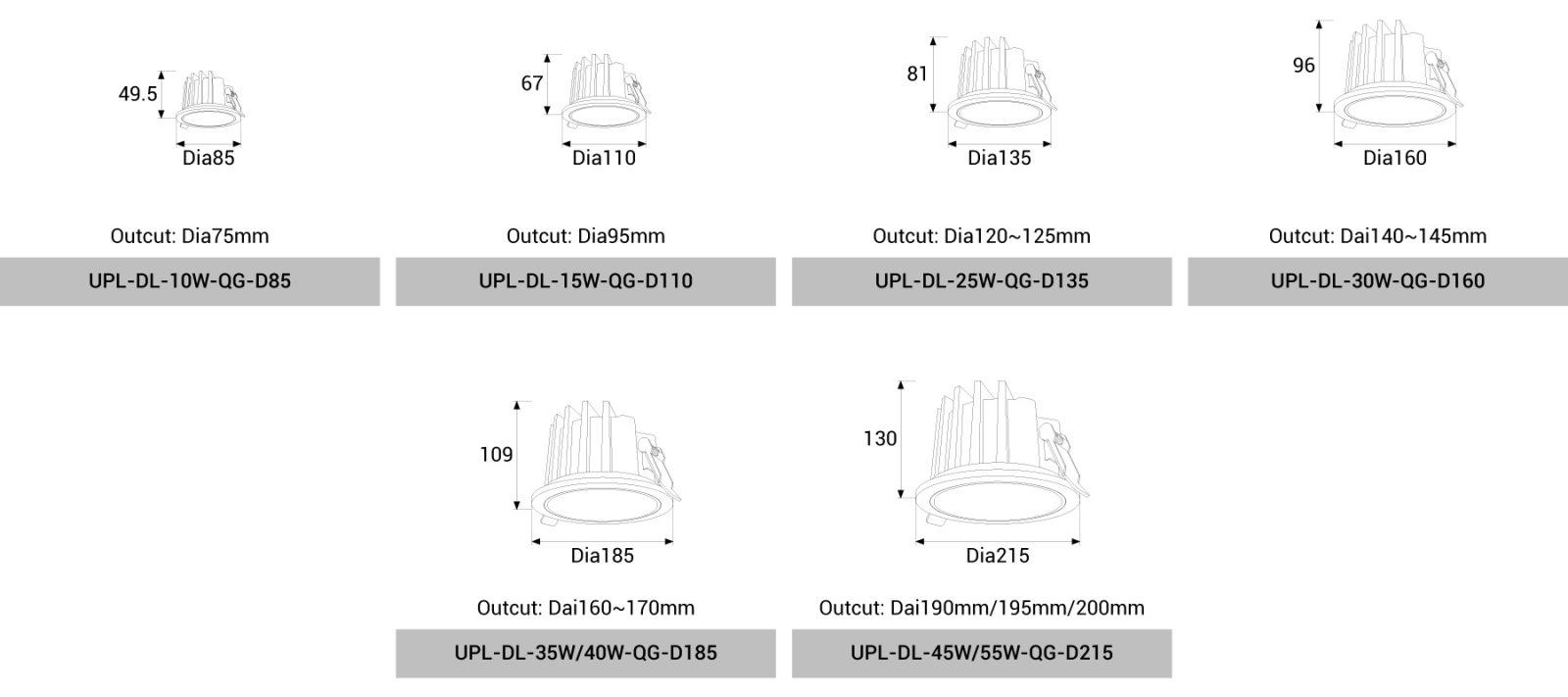

ModelPowerLamp DimensionHole Cutting
UPL-DL-10W-QG-D8510WDia85*H49.5mmDia85mm
UPL-DL-15W-QG-D11015WDia110*H67mmDia95mm
UPL-DL-25W-QG-D13525WDia135*H81mmDia120-125mm
UPL-DL-30W-QG-D16030WDia160*H96mmDia140-145mm
UPL-DL-35W-QG-D18535WDia185*H109mmDia160-170mm
UPL-DL-40W-QG-D18540WDia185*H109mmDia160-170mm
UPL-DL-45W-QG-D21545WDia215*H130mmDia190mm/Dia195mm/Dia200mm
UPL-DL-55W-QG-D21555WDia215*H130mmDia190mm/Dia195mm/Dia200mm
