UPL-2x6W/2x15W/2x30W-ROCKET2
Send Order Request
Download Technical

Share:

Product NameROCKET LED Spotlights
Power2x6W/2x15W/2x30W
Input VoltageAC230V 50HZ
Light SourcesCREE/CITIZEN/TRIDONIC COB LEDs
LED DriversPHILIPS/OSRAM/TRIDONIC
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI
Housing colorWhite+Black
FunctionRetractable & Adjustable & Rotatable
Lumens110-120LM/W
CCT2700K/3000K/3500K/4000K/5000K
Beam Angles10°/15°/24°/36°/50°
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

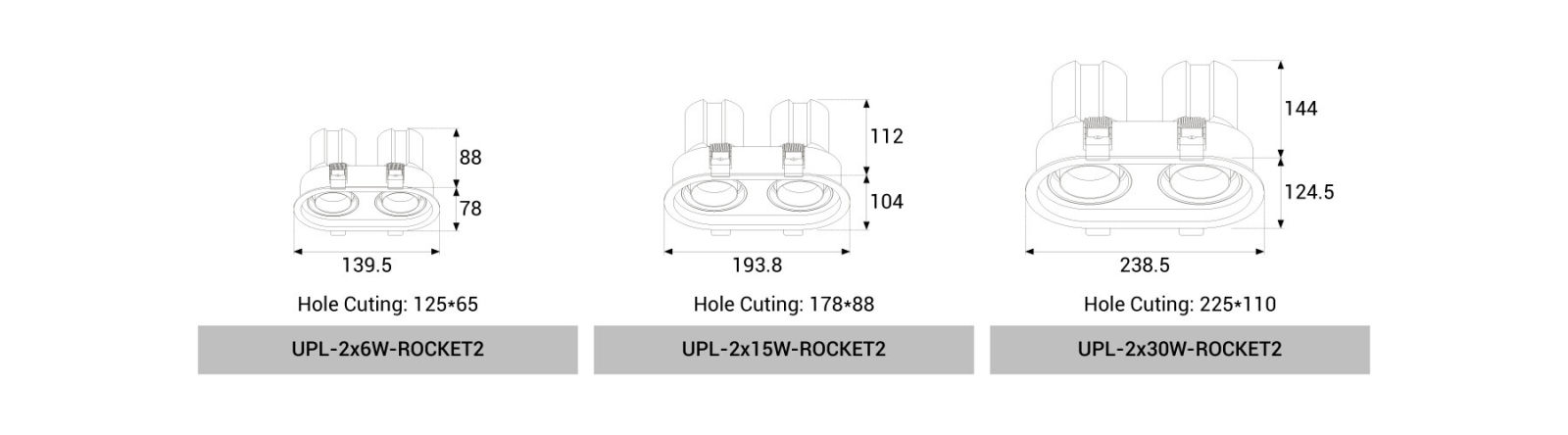

ROCKET2-尺寸

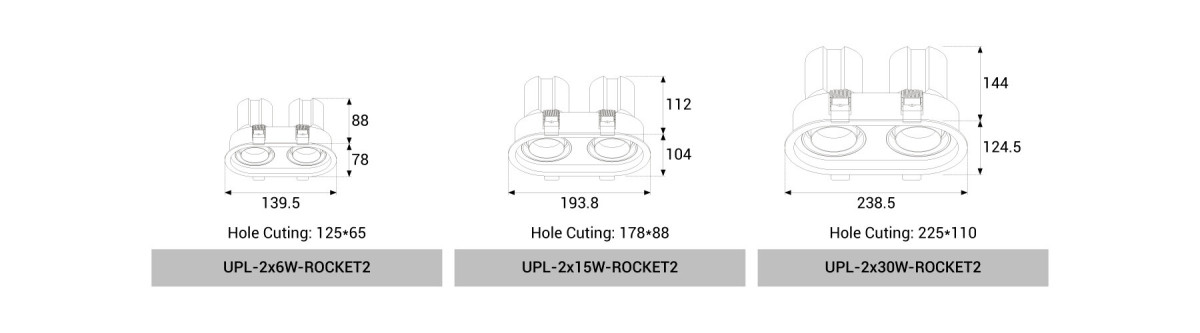

ModelPowerLamp DimensionHole Cutting
UPL-2x6W-ROCKET22x6WL139.5*W78*H88mmL125*W65mm
UPL-2x15W-ROCKET22x15WL193.8*W104*H112mmL178*W88mm
UPL-2x30W-ROCKET22x30WL238.5*W124.5*H144mmL225*W110mm
