UPL-6W/15W/30W-ROCKET-S1
Send Order Request
Download Technical

Share:

Product NameROCKET LED Spotlights
Power6W/15W/30W
Input VoltageAC230V 50HZ
Light SourcesCREE/CITIZEN/TRIDONIC COB LEDs
LED DriversPHILIPS/OSRAM/TRIDONIC
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI
Housing colorWhite+Black
FunctionRetractable & Adjustable & Rotatable
Lumens110-120LM/W
CCT2700K/3000K/3500K/4000K/5000K
Beam Angles10°/15°/24°/36°/50°
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

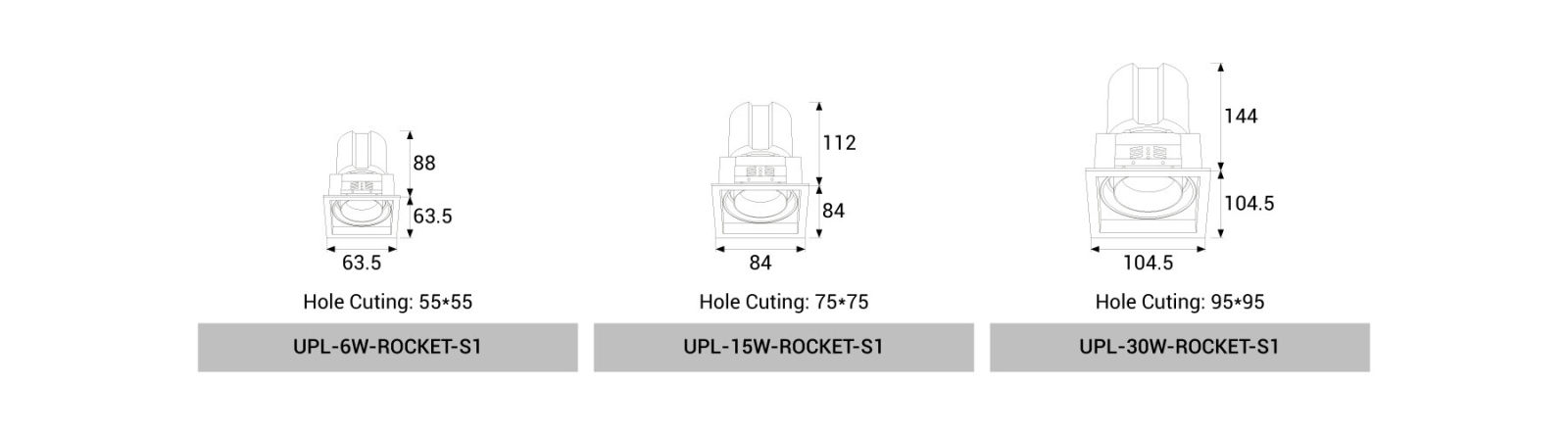

ROCKET-S1-尺寸

ModelPowerLamp DimensionHole Cutting
UPL-6W-ROCKET-S16WL63.5*W63.5*H88mmL55*W55mm
UPL-15W-ROCKET-S115WL84*W84*H112mmL75*W75mm
UPL-30W-ROCKET-S130WL104.5*W104.5*H144mmL95*W95mm
