  • UPL-3x6W/3x15W/3x30W-ROCKET-S3

›

UPL-3x6W/3x15W/3x30W-ROCKET-S3
Send Order Request
Download Technical

Share:

Product NameROCKET LED Spotlights
Power3x6W/3x15W/3x30W
Input VoltageAC230V 50HZ
Light SourcesCREE/CITIZEN/TRIDONIC COB LEDs
LED DriversPHILIPS/OSRAM/TRIDONIC
DimmingCASAMBI/ZigBee/Triac/1-10V/DALI
Housing colorWhite+Black
FunctionRetractable & Adjustable & Rotatable
Lumens110-120LM/W
CCT2700K/3000K/3500K/4000K/5000K
Beam Angles10°/15°/24°/36°/50°
CRICRI≥80/90 (CRI97 is available)
Housing materialDie-casting Aluminum
Rated life-span50 000Hours
Operateing temperature.-20°C~40°C.
Storage temperature.-30°C~60°C.
CertificatesCE & RoHs

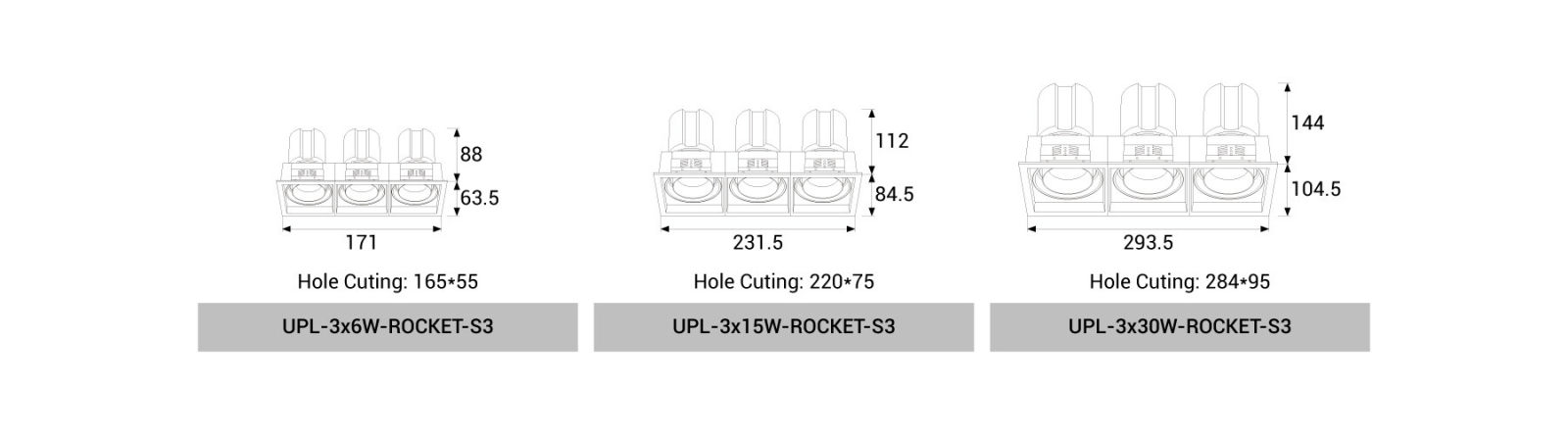

ROCKET-S3-尺寸

ModelPowerLamp DimensionHole Cutting
UPL-3x6W-ROCKET-S33x6WL171*W63.5*H88mmL165*W55mm
UPL-3x15W-ROCKET-S33x15WL231.5*W84.5*H112mmL225*W75mm
UPL-3x30W-ROCKET-S33x30WL293.5*W104.5*H144mmL285*W95mm
