UPL-DL-ASY-10W/15W/20W/30W

›

‹

  • UPL-DL-ASY-10W/15W/20W/30W
  • UPL-DL-ASY-10W/15W/20W/30W
  • UPL-DL-ASY-10W/15W/20W/30W

›

UPL-DL-ASY-10W/15W/20W/30W
Send Order Request
Download Technical

Share:

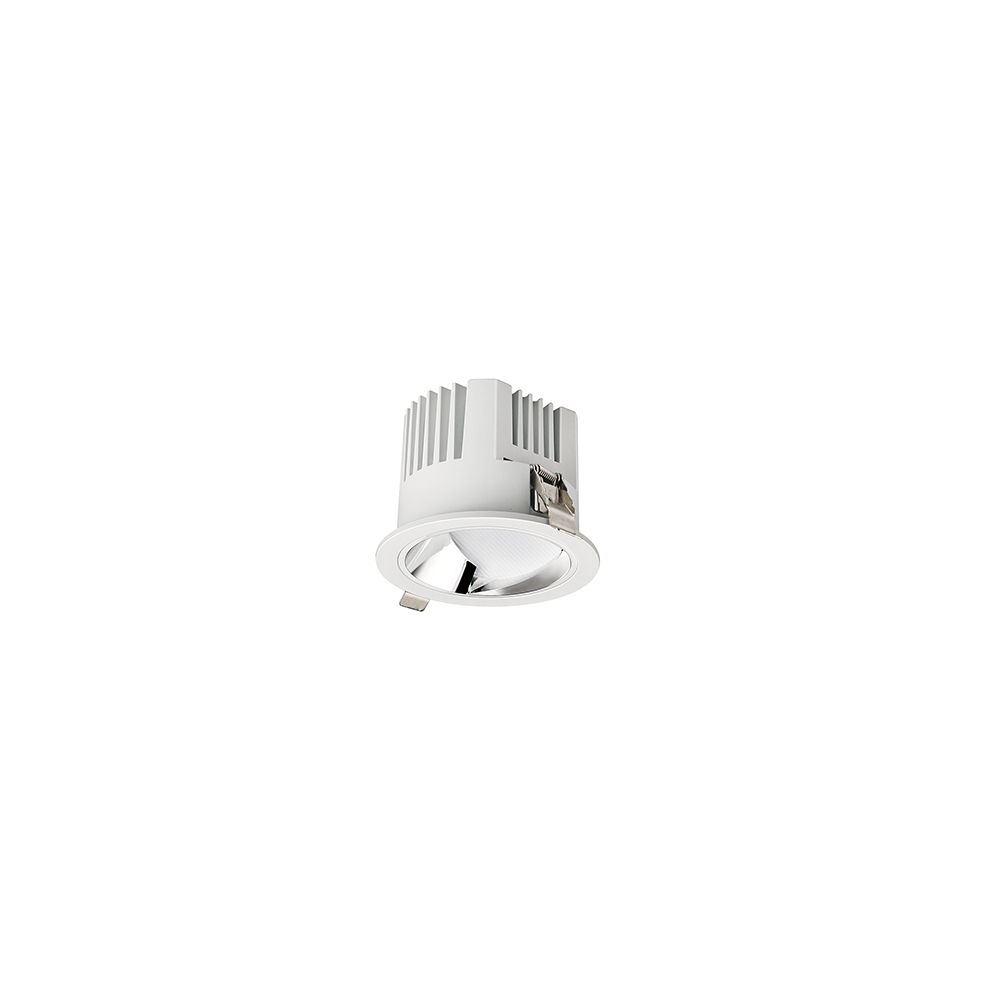

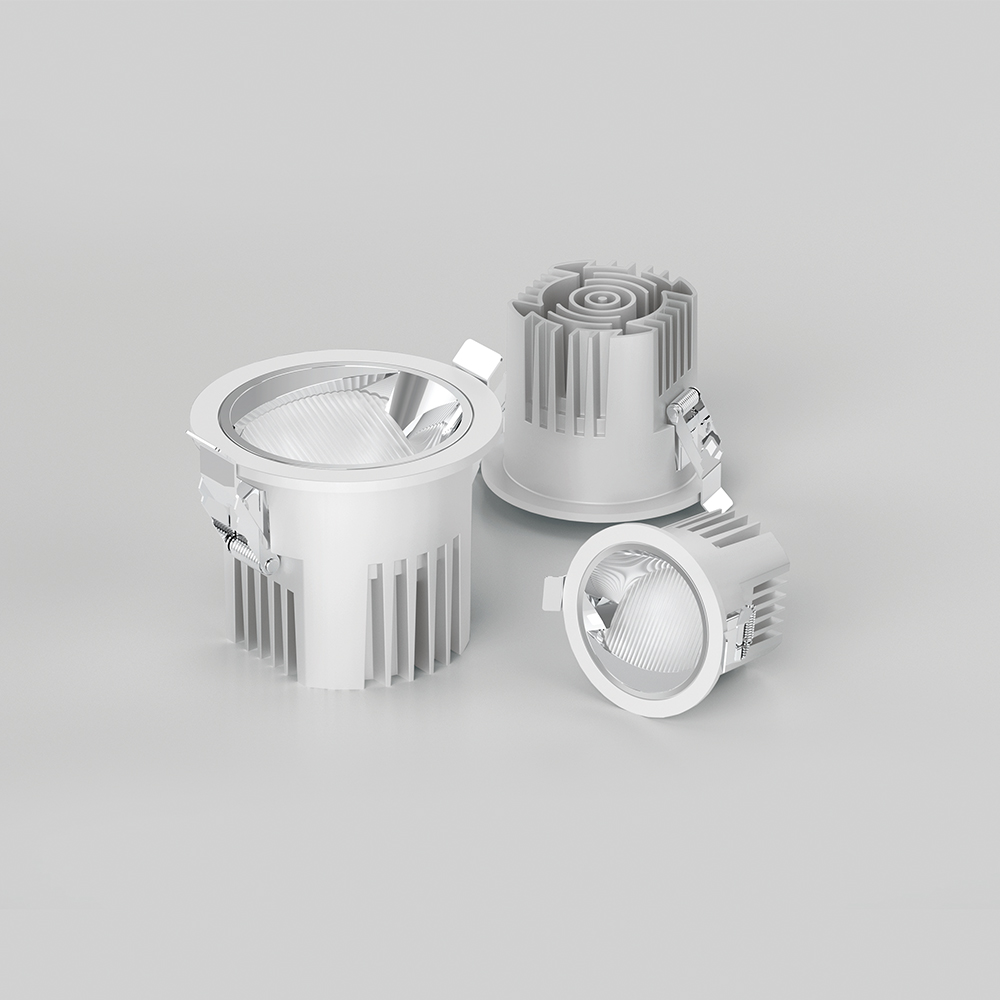

Product NameAsymmetric LED Downlights
Power10W/15W/20W/30W
Input VoltageAC230V 50HZ
Light SourceCREE / CITIZEN COB LEDs
LED DriversPHILIPS (Non-dimming)
DimmingDALI/1-10V/Triac
CCT2700K/3000K/3500K/4000K/5000K
Lumens100-110LM/W
CRI≥80/90

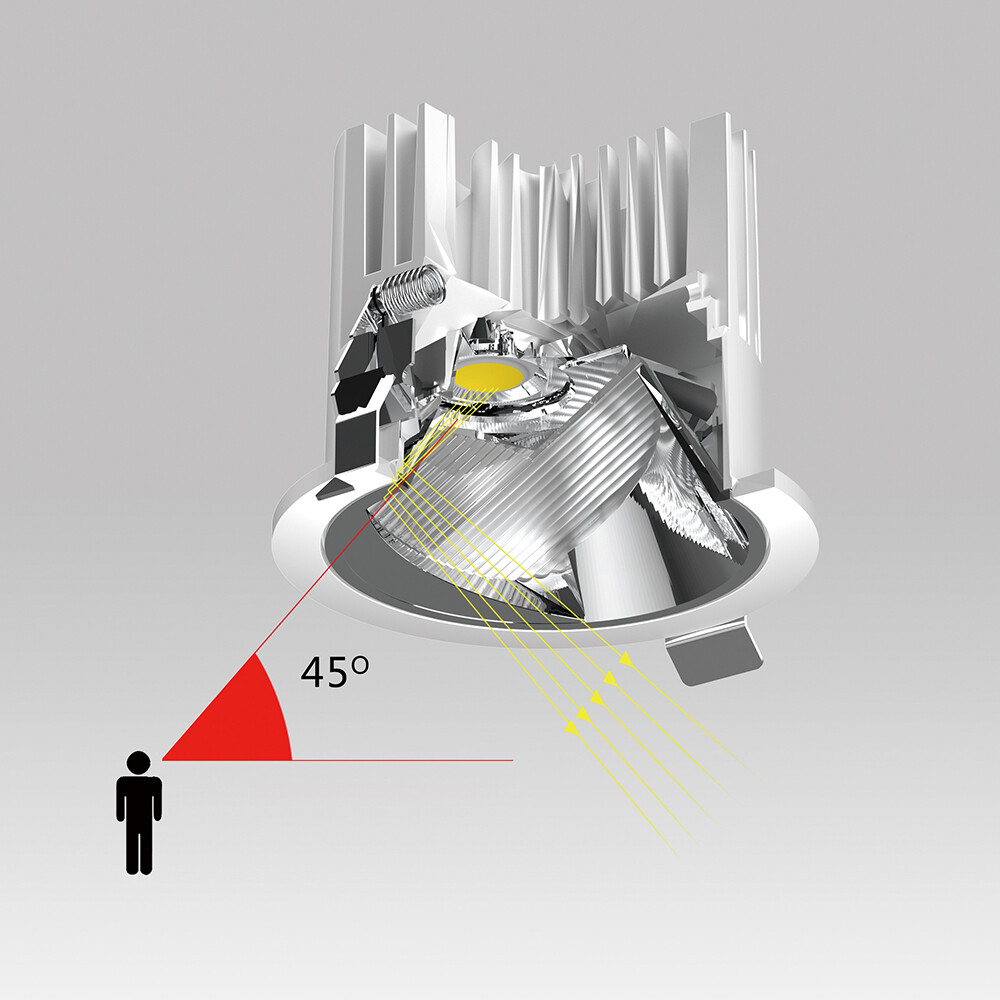

Beam AngleAsymmetric
Housing ColorWhite
CertificatesCE & RoHS

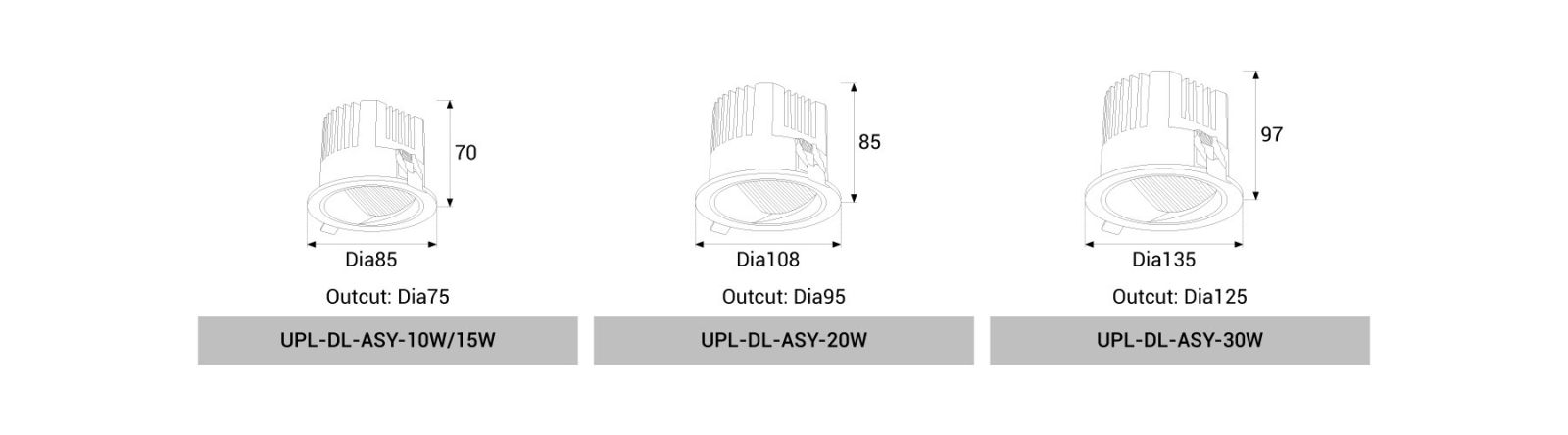

ASY-线图

ModelPowerLamp DimensionHole Cutting
UPL-DL-10W-ASY-7510WDia85*H70 mmDia75 mm
UPL-DL-15W-ASY-7515WDia85*H70 mmDia75 mm
UPL-DL-20W-ASY-9520WDia108*H85 mmDia95 mm
UPL-DL-30W-ASY-12530WDia135*H97 mmDia125 mm
